DSP500-523
Tuotenro
DSP500-523
Toimitusaika 21-30pv
0,00 EUR

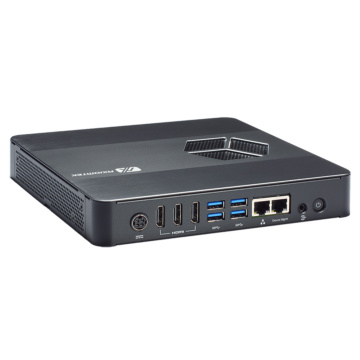

Digital Signage Player with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 3 HDMI 2.0, 4 USB and GbE LAN
| System | |
| Processor | 8th gen Intel® Core™ i7/i5/i3 & Pentium® processor |
| CPU Performance | Intel® Core™ i7-8700T Hexa Core processor 2.4GHz 12MB
Cache, TDP 35W Intel® Core™ i5-8500T Hexa Core processor 2.4GHz 12MB Cache, TDP 35W Intel® Core™ i3-8100T Hexa Core processor 2.1GHz 9MB Cache, TDP 35W |
| Security Hardware | |
| Chipset | Intel Q370 |
| Storage | 1 x M.2 Key M 2280 (SATA & NVMe) |
| Storage Support | |
| Memory | 2 x DDR4-2666 SO-DIMM, up to 32GB |
| Audio | |
| Graphics | 3 x HDMI 2.0 (4K supported) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.1 |
| Serial | 1x RS-232 |
| Video | 3 x HDMI 2.0 (4K supported) |
| Ethernet | 1x GbE LAN , RJ-45 |
| Other Ports | Line-out 1x Remote Power On/Off Connector 4x Antenna opening |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 for Wi-Fi/BT 1 x M.2 Key B 3042 for 4G/LTE 1 x SIM card slot |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.9 kg |
| Dimensions | 202 x 196 x 39 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | CPU tuuletin |
|---|
