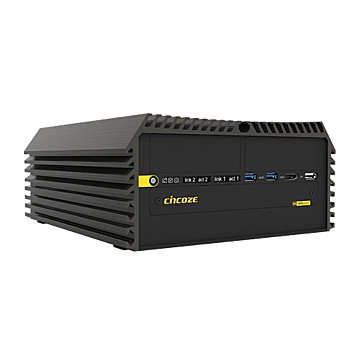

12th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot

  • 16-core 12th-gen Intel® Core™ i9/i7/i5/i3 CPU (max 65 W TDP)
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • 3x full-size Mini PCIe sockets, 2x SIM card slots
  • 1x PCI/PCIe expansion slot
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
System
Processor 12th gen Intel® Core™ 35 ~ 65W
CPU Performance
Security Hardware
Chipset Intel® R680E Chipset
Storage 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD
Support RAID 0/1/5/10
Storage Support
Memory 2x DDR4 SO-DIMM Socket, Support Up to 64GB
( Un-buffered and non-ECC)
Xeon / i9 / i7 Processor Supports Up to 2933MHz
i5 / i3 Processor Supports Up to 2666 MHz
Pentium / Celeron Processor Supports Up to 2400MHz
Graphics Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5
Integrated Intel® UHD Graphics 730: Core™ i3
Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Supports Quad Independent Display
I/O Ports
USB 2.0 2 x USB2.0
USB 3.2 4x USB 3.2 (5Gbps)
2x USB 3.2 (10Gbps)
Serial 2x RS-232/422/485
Optional CMI Module:
-4x Isolated COM Module
-4x COM Moduled
Video 1 x HDMI
2 x DisplayPort
1 x VGA
Ethernet 2x GbE LAN , RJ-45
Optional CMI Module:
- 4x RJ45 GbE LAN Module (Intel® I210AT)
- 4x M12 GbE LAN Module (Intel® I210AT)
Other Ports Mic-in/Line-out
1x PS2 keyboard/mouse
1x Remote Power On/Off Connector
1x Remote Reset Connector
Expansion
Expansion Interface 1x CFM Interface (Control Function Module)
2x CMI (Combined Multiple I/O) High Speed Interface
2x CMI (Combined Multiple I/O) Low Speed Interface
3x Full-size Mini-PCIe Sockets
2x SIM Socket
1x PCIe /PCI -slot
Operating System
Operating System Windows® 10 / Windows® 11
Power
DC Input / Source Voltage Power Input Voltage 9~48VDC
Operating Temperature
Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
-40°C ~ +50°C with W.T. SSD, 65W TDP CPU (with external Fan kit)
Humidity Range 10% ~ 95%, non-condensing
Shock MIL-STD-810G
Vibration MIL-STD-810G
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 4.5 kg
Dimensions 227 x 261 x 88 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk / Wall mounting
Peripherals & Devices
Accessories Optional Modules
Extra Features
Certification
Certification CE, UKCA, FCC, ICES-003 Class A
EN 50155 (EN 50121-3-2 Only)
