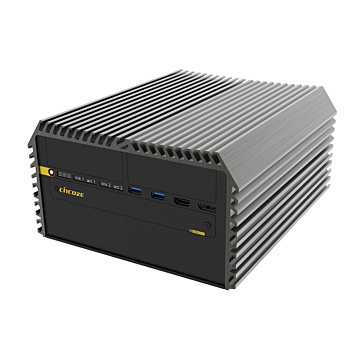

DS-1302
Tuotenro
DS-1302
Toimitusaika 21-30pv
0,00 EUR
- 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
- 2x GbE LAN and optional 2x 10GbE LAN
- 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
- 2x PCI/PCIe expansion slots
- 3x full-size Mini PCIe sockets, 2x SIM card slots
- Optional CMI modules for I/O expansion
- Optional CFM modules for ignition sensing & PoE
- Wide operating temperature -40°C to 70°C
- MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)
| System | |
| Processor | 10th gen Intel® Core™ / Xeon , 35 ~ 80W |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® W480E Chipset |
| Storage | 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD Support RAID 0/1/5/10 |
| Storage Support | |
| Memory | • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC) • Xeon / i9 / i7 Processor Supports Up to 2933MHz • i5 / i3 Processor Supports Up to 2666 MHz • Pentium / Celeron Processor Supports Up to 2400MHz |
| Graphics | Intel® UHD 630 Graphics supports triple independent display |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.2 | 4x USB 3.2 (5Gbps) 2x USB 3.2 (10Gbps) |
| Serial | 2x RS-232/422/485 Optional CMI Module: -4x Isolated COM Module -4x COM Moduled |
| Video | 1 x HDMI 2 x DisplayPort 1 x VGA |
| Ethernet | 2x GbE LAN , RJ-45 Optional CMI Module: - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) |
| Other Ports | Mic-in/Line-out 1x PS2 keyboard/mouse 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 2 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111.15 x 235 mm 1x CFM Interface (Control Function Module) 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface 3x Full-size Mini-PCIe Sockets 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +45°C with W.T. SSD, 65W TDP CPU -40°C ~ +40°C with W.T. SSD, 80W TDP CPU (with external Fan kit) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.9 kg |
| Dimensions | 227 x 261 x 128 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway) IEC/EN 62368-1 |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
