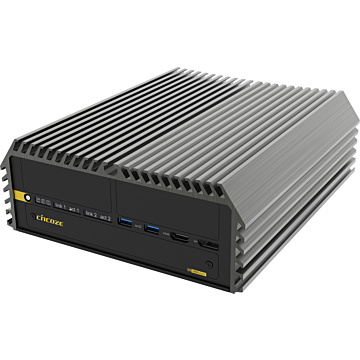

DS-1300

Muokkaa DS-1300
DS-1300_Barebone

* Pakolliset kentät

Tuote
DS-1300
DS-1300

0,00 EUR

Yhteenveto
    Tuotenro
    DS-1300
    Varastossa

    0,00 EUR

    • 10-core 10th-gen Intel® Xeon® and Core™ i9/i7/i5/i3 CPU (max 80 W TDP)
    • 2x GbE LAN and optional 2x 10GbE LAN
    • 2x 2.5" SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
    • 3x full-size Mini PCIe sockets, 2x SIM card slots
    • Optional CMI modules for I/O expansion
    • Optional CFM modules for ignition sensing & PoE
    • Wide operating temperature -40°C to 70°C
    • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)

    System
    Processor 10th gen Intel® Core™ / Xeon , 35 ~ 80W
    CPU Performance
    Security Hardware
    Chipset Intel® W480E Chipset
    Storage 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 )
    1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
    3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
    1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD
    Support RAID 0/1/5/10
    Storage Support
    Memory • 2x DDR4 SO-DIMM Socket, Support Up to 64GB
    ( Un-buffered and non-ECC)
    • Xeon / i9 / i7 Processor Supports Up to 2933MHz
    • i5 / i3 Processor Supports Up to 2666 MHz
    • Pentium / Celeron Processor Supports Up to 2400MHz
    Graphics Intel® UHD 630 Graphics supports triple independent display
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.2 4x USB 3.2 (5Gbps)
    2x USB 3.2 (10Gbps)
    Serial 2x RS-232/422/485
    Optional CMI Module:
    -4x Isolated COM Module
    -4x COM Moduled
    Video 1 x HDMI
    2 x DisplayPort
    1 x VGA
    Ethernet 2x GbE LAN , RJ-45
    Optional CMI Module:
    - 4x RJ45 GbE LAN Module (Intel® I210AT)
    - 4x M12 GbE LAN Module (Intel® I210AT)
    Other Ports Mic-in/Line-out
    1x PS2 keyboard/mouse
    1x Remote Power On/Off Connector
    1x Remote Reset Connector
    Expansion
    Expansion Interface 1x CFM Interface (Control Function Module)
    2x CMI (Combined Multiple I/O) High Speed Interface
    2x CMI (Combined Multiple I/O) Low Speed Interface
    3x Full-size Mini-PCIe Sockets
    2x SIM Socket
    Operating System
    Operating System Windows® 10
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +40°C with W.T. SSD, 65W TDP CPU
    -40°C ~ +45°C with W.T. SSD, 65W TDP CPU (with external Fan kit)
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.9 kg
    Dimensions 227 x 261 x 88 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories Optional Modules
    Extra Features
    Certification
    Certification CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
    IEC/EN 62368-1
    Lisätietoja
    Valmistaja / BrandCincoze
    JäähdytysFanless
    CPU FamilyComet Lake (10th Gen Core i3/i5i7/i9)
    Operating TempWide Temp -40..70C
