DS-1102
Tuotenro
DS-1102
Toimitusaika 21-30pv

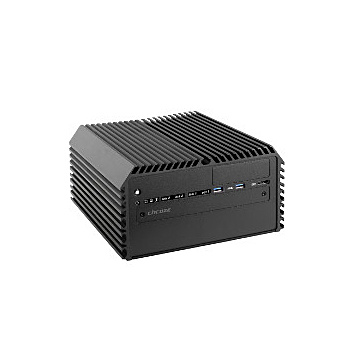

Vehicle Computer, 6th Generation Intel Core i3 / i5 / i7, Modular and Expandable, Rugged, 2x PCI/PCIe slot
Ominaisuudet
* Supports 6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU
* DDR4 memory, supports Up to 32 GB
* Triple Independent Display (DVI-I, DP, DP/HDMI)
* 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
* 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
* 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
* Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
* Wide Operating Temperature (-40°C to 70°C)
* e-Mark, EN50155 / EN50121-3-2 Certified for Railway Application
* DDR4 memory, supports Up to 32 GB
* Triple Independent Display (DVI-I, DP, DP/HDMI)
* 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
* 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
* 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
* Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
* Wide Operating Temperature (-40°C to 70°C)
* e-Mark, EN50155 / EN50121-3-2 Certified for Railway Application
Spesifikaatiot
| System | |
| Processor | 7th gen Intel® Core™, 35W 6th gen Intel® Core™, 35 ~ 65W |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel® Q170 |
| Storage | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) 3x mSATA (shared by Mini-PCIe socket) (Gen2) |
| Storage Support | |
| Memory | 2 x DDR4 SO-DIMM slot, up to 32GB |
| Graphics | Intel® HD Graphics supports triple independent display |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 6x USB 3.0 |
| Serial | 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 |
| Video | 1 x DVI-I, 1 x DP, 1x DP/HDMI |
| Ethernet | 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE) RJ45 |
| Other Ports | Mic-in/Line-out Optical Isolated DIO (with optional CMI module) (4x DI/4x DO, 10-Pin Terminal Block ) 1x Remote Power On/Off Connector 1x Remote Reset Connector |
| Expansion | |
| Expansion Interface | 1x CFM Interface 2x CMI Interfaces 3x Full-size Mini-PCIe Sockets 1x SIM Socket 2x PCI/PCIe Expansion slot |
| Operating System | |
| Operating System | Windows® 7/8/10, Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +50°C with W.T. SSD, 65W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.7 kg |
| Dimensions | 227 x 261 x 128 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified, E-Mark,EN50155, EN50121-3-2 |
