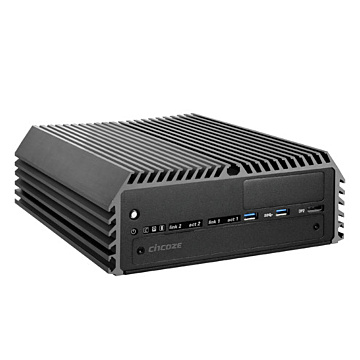

DS-1100

Muokkaa DS-1100
DS-1100

* Pakolliset kentät

Tuote
DS-1100
DS-1100

0,00 EUR

Yhteenveto
    Tuotenro
    DS-1100-v1
    Toimitusaika 21-30pv

    0,00 EUR

    • Supports 7/6th-Gen Intel® Core™ i3 / i5 / i7 Socket-type CPU (LGA1151)
    • 2x DDR4 SO-DIMM Socket, 2,133MHz, Supports Up to 64 GB
    • Triple Independent Display (1x DVI-I, 2x DP)
    • 2x 2.5" SATA HDD/SSD bay (Gen3), Supports RAID 0/1
    • 2x CMI Interfaces with 6 Types of Optional Modules for I/O Expansion
    • 1x CFM Interface for Adding Optional Power Ignition Sensing (IGN) Module
    • Supports 3x Full-size Mini-PCIe Slot for Wireless & I/O Expansion
    • Wide Operating Temperature (-40°C to 70°C)
    • EN50121-3-2 Certified for Railway Application
    • E-Mark (E13, No.10R-0514229) Certified

    Spesifikaatiot
    System
    Processor 7th gen Intel® Core™, 35W
    6th gen Intel® Core™, 35 ~ 65W
    CPU Performance
    Security Hardware
    Chipset Intel® Q170
    Storage 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
    3x mSATA (shared by Mini-PCIe socket) (Gen2)
    Storage Support
    Memory 2 x DDR4 SO-DIMM slot, up to 32GB
    Graphics Intel® HD Graphics supports triple independent display
    I/O Ports
    USB 2.0 2 x USB2.0
    USB 3.0 6x USB 3.0
    Serial 2x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
    Video 1 x DVI-I, 1 x DP, 1x DP/HDMI
    Ethernet 2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE) RJ45
    Other Ports Mic-in/Line-out
    Optical Isolated DIO (with optional CMI module)
    (4x DI/4x DO, 10-Pin Terminal Block )
    1x Remote Power On/Off Connector
    1x Remote Reset Connector
    Expansion
    Expansion Interface 1x CFM Interface
    2x CMI Interfaces
    3x Full-size Mini-PCIe Sockets
    1x SIM Socket
    Operating System
    Operating System Windows® 7/8/10, Linux
    Power
    DC Input / Source Voltage Power Input Voltage 9~48VDC
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD, 35W TDP CPU
    -40°C ~ +50°C with W.T. SSD, 65W TDP CPU
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 4.7 kg
    Dimensions 227 x 261 x 88 mm
    Enclosure
    Bezel
    Material Aluminum / Steel
    Mounting Desk / Wall mounting
    Peripherals & Devices
    Accessories
    Extra Features
    Certification
    Certification CE, FCC certified, E-Mark,EN50155, EN50121-3-2
    Lisätietoja
    JäähdytysFanless
