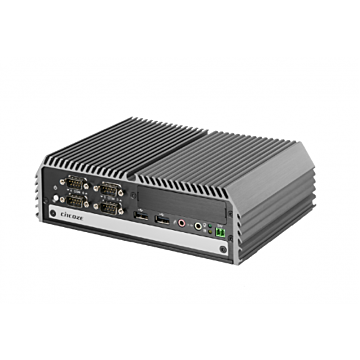

DI-1000-i3
Tuotenro
DI-1000-i3
Toimitusaika 21-30pv
0,00 EUR
- Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
- 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 32 GB
- Triple Independent Display (DVI-I, DisplayPort)
- Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
- 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1
- Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO
- Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
- Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
- Cincoze MEC Module Kits for Various I/O Expansion
- 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
- Wide Operating Temperature (-40°C to 70°C)
- EN50121-3-2 Certified for Railway Application
- E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application
| System | |
| Processor | Onboard Intel® Core™ i3-6100U Processor |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2x 2.5” SATA HDD/SSD Bay 2x mSATA Socket (shared by Mini-PCIe socket) Support RAID 0/1 |
| Storage Support | |
| Memory | 1x DDR4 SO-DIMM Socket, Support Up to 32GB |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4x USB 3.0 |
| Serial | 6x RS-232/422/485 |
| Video | 1 x DVI-I 1 x DisplayPort |
| Ethernet | 2x GbE LAN , RJ-45 |
| Other Ports | 8x Optical Isolated DIO Mic-in/Line-out 1x PS2 keyboard/mouse 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x CFM Interface (Control Function Module) 1x CMI (Combined Multiple I/O) High Speed Interface 2x Full-size Mini-PCIe Sockets 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 7 / 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 15W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.7 kg |
| Dimensions | 203 x 142 x 67 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A, EN50121-3-2, E-Mark |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Skylake (6th Gen Core i3/i5i7) |
| Operating Temp | Wide Temp -40..70C |
