DC-1300
Tuotenro
DC-1300
Toimitusaika 21-30pv
0,00 EUR

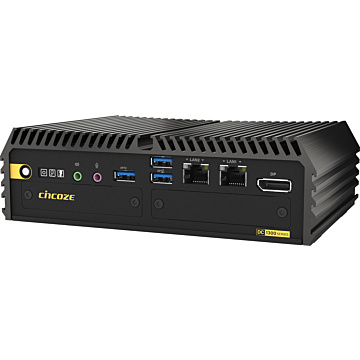

Intel® Alder Lake-N Processor Entry Performance and Compact Rugged Embedded Computer
- Onboard Intel® Alder Lake-N Processor N97 and Core™ i3-N305 Processor
- 1 x DDR5 SO-DIMM Sockets, Supports up to 4800MHz 16GB Memory
- 1x M.2 Key B Type 3052/3042 Socket for 5G Module Expansion
- 1x M.2 key B Type 2242 Socket for I/O Module Expansion
- CMI Technology for Optional I/O Module Expansions
- CFM Technology for Power Ignition Sensing Function
| System | |
| Processor | Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1x 2.5” SSD drive bay 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0) |
| Storage Support | |
| Memory | 1x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 16GB |
| Graphics | Integrated Intel® UHD Graphics |
| I/O Ports | |
| USB 2.0 | 1x USB2.0 |
| USB 3.0 | 2x USB 3.2 (10Gbps) 1x USB 3.2 (5Gbps) |
| Serial | 2x RS-232/422/485 (with Auto Flow Control (Supports 5V/12V)) |
| Video | 1 x DP Optional CMI 1x Display |
| Ethernet | 2x 2.5GbE LAN , RJ-45 (Intel I225) |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x CMI Interface for optional Display or I/O Module
Expansion 1x CMI Interface for optional I/O Module Expansion 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1/ USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion 1x M.2 Key B Type 2242 (PCIe Gen 3x1), Support Add-on Card Expansion 1x CFM Interface for optional IGN Module Expansion 1x Front Accessible Dual Nano SIM Socket |
| Operating System | |
| Operating System | Windows® 10 / Windows® 11 / Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | 12W TDP Processor: -40°C to 70°C 15W TDP Processor: -40°C to 60°C With Wide-Temp Industrial Memory/SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 185 x 131 x 56.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting/DIN/VESA |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC e-mark |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Fanless |
| Operating Temp | Wide Temp -40..60C |
