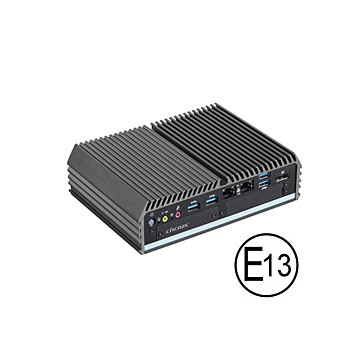

DC-1200
Tuotenro
DC-1200-N42_bund
Toimitusaika 21-30pv
0,00 EUR
- Onboard Intel® Pentium® N4200 Processor
- Supports Triple Independent Display
- Supports CMI Interface for I/O Expandability
- Supports PoE+ and Power Ignition Function (with optional CFM modules)
- 1x 2.5” SATA Drive Bay, 1x mSATA Socket
- 2x Full Size Mini-PCIe Socket, 2x SIM Card Socket
- Compact Size (185 x 131 x 56.5 mm)
- Wide Operating Temperature -40°C to 70°C
- E-Mark (E13, No. 10R-0515075), LVD EN60950-1
Spesifikaatiot
| System | |
| Processor | Intel® Pentium® N4200 Quad Core Processor |
| CPU Performance | up to 2.50 GHz |
| Security Hardware | |
| Chipset | SoC |
| Storage | 2.5” SSD drive bay |
| Storage Support | |
| Memory | 1 x DDR3L SO-DIMM slot, up to 8GB |
| Graphics | Integrated Intel® HD Graphics 505 (Pentium® N4200) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 (with Auto Flow Control (Supports 5V/12V)) |
| Video | 1 x DVI-D, 1 x DP |
| Ethernet | 2x GbE LAN , RJ-45 Optional CMI Module: - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 2x CFM Interface (Control Function Module) 2x CMI (Combined Multiple I/O) 2x Full-size Mini-PCIe Sockets 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.8 kg |
| Dimensions | 185 x 131 x 56.5 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting/DIN |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, FCC e-mark |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Apollo Lake (Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
