DA-1200
Tuotenro
DA-1200
Varastossa
0,00 EUR

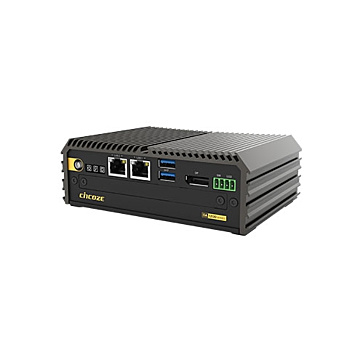

Intel Alder Lake-N Processor N97 Rugged Embedded Computer
- Onboard Intel ® Alder Lake-N Processor N97
- Ultra Compact Size (150 x 105 x 52.3 mm)
- 1 x DDR5 SO-DIMM Sockets, Supports Up to 4800MHZ, 16GB
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1 x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion

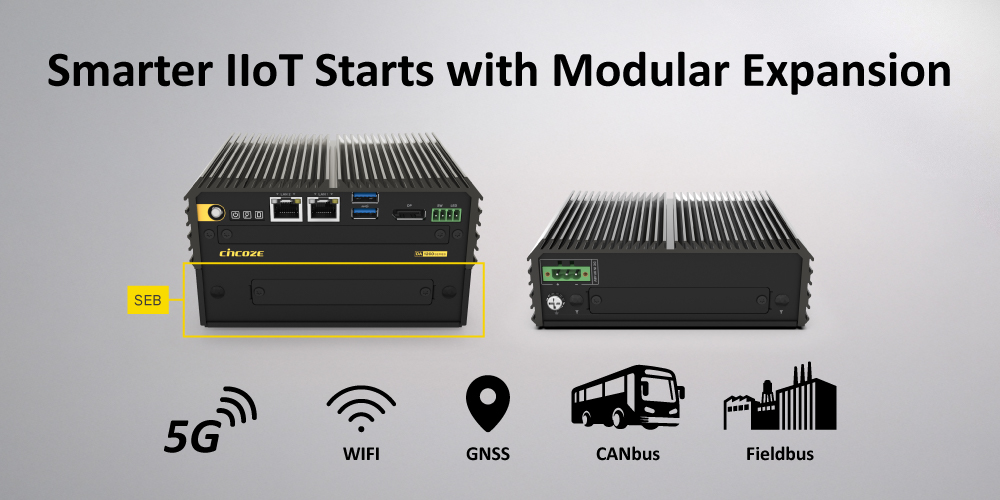

- Optional CMI modules for I/O expansion

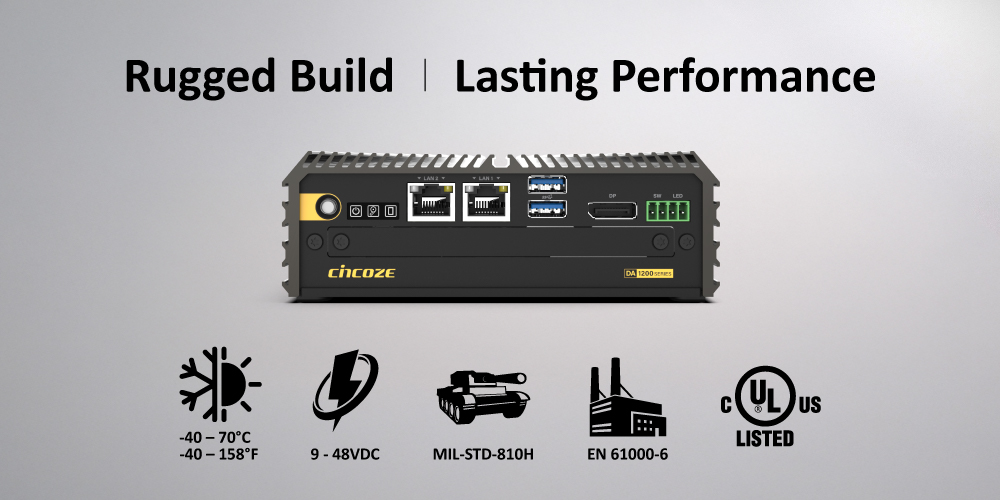

- Wide Operating Temperature -40°C to 70°C
| System | |
| Processor | Onboard Intel® Alder Lake-N Processor N97 Quad Core, up to 3.6Ghz |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1x 2.5” SATA HDD/SSD Bay |
| Audio | |
| Memory | 1x DDR5 SO-DIMM Socket Supports DDR5 4800MHz Memory Up to 16GB (un-buffered and non-ECC) |
| Graphics | Integrated Intel® UHD Graphics |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB 3.2 |
| Serial | - |
| Video | 1 x DisplayPort 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion |
| Ethernet | 2x 2.5GbE LAN, RJ45, Intel® I225 |
| Other Ports | 1x Remote Power On/Off Connector 1x Remote Power Led |
| Expansion | |
| Expansion Interface | 1x M.2 Key B Type 3042/3052 Socket, Support 5G/Storage/Add-on Card Expansion 1x M.2 Key B Type 2242, Support Storage/Add-on Card Expansion 1x CMI Interface for optional CMI Module Expansion 1x SIM slot |
| Operating System | |
| Operating System | Windows® 11/ Windows® 10 LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC IGN function with optional module |
| Operating Temperature | |
| Operating Temperature | -40°C to 70°C PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) With extended temperature peripherals; Ambient with air flow |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.8 kg |
| Dimensions | 150mm x 105mm x 53mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall / Side / DIN-RAIL / VESA Mount |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN61000-6-4, EN61000-6-2 (24VDC Input Only) |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Fanless |
| CPU Family | Alder Lake (12th Gen Atom X/Intel N) |
| Operating Temp | Wide Temp -40..70C |
