CV-110R
Tuotenro
cv-110R
Toimitusaika 21-30pv

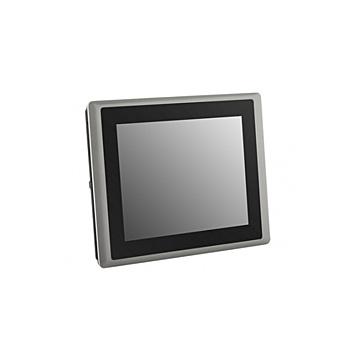

10.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
Ominaisuudet
* 10.4" SVGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
* 70,000 hrs LED Backlight Life
* Resolution up to 800 x 600 (SVGA)
* 400 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
* 70,000 hrs LED Backlight Life
* Resolution up to 800 x 600 (SVGA)
* 400 nits Brightness
* Designed with Aluminum Die-cast Front Frame
* IP 65 Compliant Front Panel
* Convertible Display System (CDS) Supported
Spesifikaatiot
| Display | |
| Screen Size | 10.4" TFT LCD |
| Screen Resolution | 800x600 (SVGA) |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | 160/130 |
| Number of Colors | 16.2M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) Resistive 5-wire (Single touch) |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 75ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 2,24 kg |
| Dimensions | 295 x 227.3 x 56.2 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Näytön koko | 10.4" |
|---|---|
| Kosketusominaisuuden tyyppi | Resistive |
| Näytön signaali (input) | CDS |
