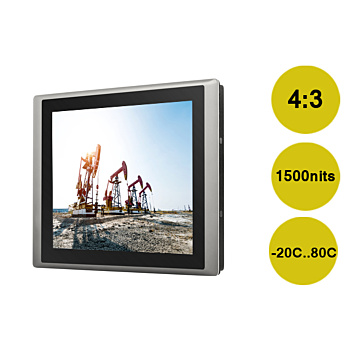

CS-117 17.1" Hi-Brightness TFT PCAP Panel PC, IP65
Tuotenro
CS-117_Px
Toimitusaika 21-30pv
0,00 EUR
17" TFT-LCD Hi-Brightness Modular Panel PC
- 17" TFT-LCD SXGA with Projected Capacitive Touch
- Modular PC system
- Front Panel IP65 Compliant
- Designed with Rugged Aluminum Die-casting Front Bezel
- Supports Panel / VESA / Rack Mount
| Display | |
| Screen Size | 17" TFT LCD |
| Screen Resolution | 1280 x 1024 (XGA) |
| Display Ratio | 4 ::03 |
| Contrast Ratio | 800:1 |
| Brightness | 1500 nits |
| Viewing Angle | 160 / 140 degree |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen |
Projected Capacitive (Multi-touch) |
| I/O Ports | |
| P1301 | DP,VGA,4xUSB,2xCOM 2xGbE,DIO,Audio |
| P2202 | HDMI,VGA,4xUSB,4xCOM, 2xGbE,DIO,Audio |
| Operating Temperature | |
| Operating Temperature | -20ºC to 80ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 7.2 kg P1301 8.2 kg P2202 |
| Dimensions | 450 x 350 x xx mm |
| Enclosure | |
| Bezel | IP65 front panel , flat surface |
| Material | Aluminium |
| Mounting | Panel mount / VESA |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A UL, cUL, CB, IEC, EN 62368-1 |
| Valmistaja / Brand | Cincoze |
|---|
