CS-108C
Tuotenro
CS-108C
Toimitusaika 21-30pv

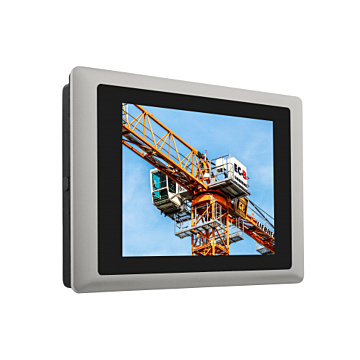

8.4" TFT-LCD 1600 nits SVGA 4:3 Display Module with Projected Capacitive Touch
Ominaisuudet
* 8.4” TFT-LCD with Ultra High Brightness up to 1,600 nits and 800 x 600 (SVGA)
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
* Wide Range Operating Temperature -20°C to 70°C
* True Flat IP65 Front Panel Protection
* Rugged Aluminum Die-casting Bezel
* Convertible Display System (CDS) Technology Supported
Spesifikaatiot
| Display | |
| Screen Size | 8" TFT LCD |
| Screen Resolution | 800x600 (SVGA) |
| Display Ratio | 4 ::3 |
| Contrast Ratio | |
| Brightness | 1600 nits |
| Viewing Angle | 160/140 |
| Number of Colors | 16.2M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| Video | According to CDS module |
| Other Ports | |
| Operating Temperature | |
| Operating Temperature | -20ºC to 70ºC |
| Humidity Range | 10% to 95% non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 1,6 kg |
| Dimensions | 262 x 186 x 56,2 mm |
| Enclosure | |
| Bezel | IP65 front panel, flat surface |
| Material | Aluminum |
| Mounting | by CDS module |
| Note * | |
| Certification | |
| Certification | CE / FCC |
| Näytön koko | 8" |
|---|---|
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| Näytön signaali (input) | CDS |
