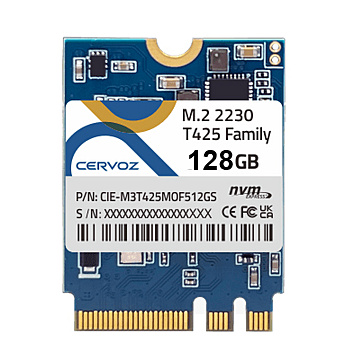

128GB M.2 2230 SSD, Industrial, NVME, Wide-temp

Tuotenro
CIE-M3T425MMF128GW-B
Toimitusaika 14-22pv

Industrial M.2 2230 Embedded Module, B+M Key

  • Compliant with PCIe Gen3x2 interface
  • Compliance: NVMe 1.3/ PCI Express Base 3.1
  • 3D TLC flash memory
  • Capacity: 64GB/ 128GB/ 512GB
  • End-to-End data protection
  • SLC write cache technology
  • Thermal throttling technology
  • Operating as boot disk
  • Static and dynamic wear leveling
  • Bad block management
  • S.M.A.R.T. & TRIM command
Form Factor
Form Factor M.2 PCIe 2230 (B+M key)
Product grouping Industrial M.2 2230 Embedded Module
System
Interface PCIe Gen3x2
Connector & Form factor M.2 2230 (B+M-key)
NAND Flash type 3D TLC
Capacity 64GB/ 128GB/ 512GB
Sequential Read up to 1035 MB/s
Sequential Write up to 940 MB/s
DRAM buffer -
ECC Scheme LDPC
MTBF >3 000 000 h
Supply Voltage 3.3V DC
Dimensions 30mm x 22mm x3.5mm
Specialty Technology End-to-End data protection
SLC write cache technology
Thermal throttling

Anti-Vibration Fill (Optional)
Conformal Coating (Optional)
Environmental
Operating Temp Standard : 0°C ~ 70°C
Wide : -40°C ~ 85°C
Lisätietoja
Valmistaja / BrandCervoz
Capacity128GB
Interface (Connector)M.2 B & M-key
Data InterfaceNVMe /PCIe Gen3x2
Operating TempExtreme Wide Temp -40..85C
