64GB M.2 2230 SSD, Industrial, NVME, Normal-temp
Tuotenro
CIE-M3T425MLF064GS
Toimitusaika 14-22pv

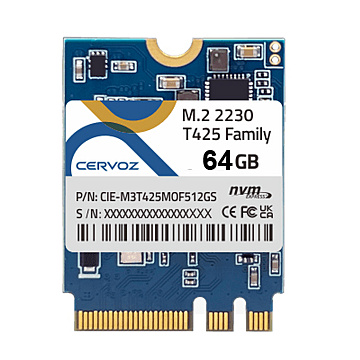

Industrial M.2 2230 Embedded Module, A+E key
- Compliant with PCIe Gen3x2 interface
- Compliance: NVMe 1.3/ PCI Express Base 3.1
- 3D TLC flash memory
- Capacity: 64GB/ 128GB/ 512GB
- End-to-End data protection
- SLC write cache technology
- Thermal throttling technology
- Operating as boot disk
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
| Form Factor | |
| Form Factor | M.2 PCIe 2230 (A+E) |
| Product grouping | Industrial M.2 2230 Embedded Module |
| System | |
| Interface | PCIe Gen3x2 |
| Connector & Form factor | M.2 2230 (A+E-key) |
| NAND Flash type | 3D TLC |
| Capacity | 64GB/ 128GB/ 512GB |
| Sequential Read | up to 815 MB/s |
| Sequential Write | up to 760 MB/s |
| DRAM buffer | - |
| ECC Scheme | LDPC |
| MTBF | >3 000 000 h |
| Supply Voltage | 3.3V DC |
| Dimensions | 30mm x 22mm x3.5mm |
| Specialty Technology | End-to-End data protection SLC write cache technology Thermal throttling Anti-Vibration Fill (Optional) Conformal Coating (Optional) |
| Environmental | |
| Operating Temp | Standard : 0°C ~ 70°C Wide : TBC |
| Valmistaja / Brand | Cervoz |
|---|---|
| Capacity | 64GB |
| Interface (Connector) | M.2 A & E-key |
| Data Interface | NVMe /PCIe Gen3x2 |
| Operating Temp | Normal Temp 0..70C |
