AX92324-PoE
Tuotenro
AX92324-PoE
Toimitusaika 21-30pv
2-port 10GbE PoE PCIe Card
- Intel® Ethernet Controller X550-AT2, up to 10 Gbps data rate
- Supports 15.5KB Jumbo Frame and IEEE 1588
- Compliant with IEEE802.3at to deliver 25.5W per port
- PCI Express x4 compliant
- PoE power on/off via Power Manager software and API
- Operating temperature range from 0°C to 55°C

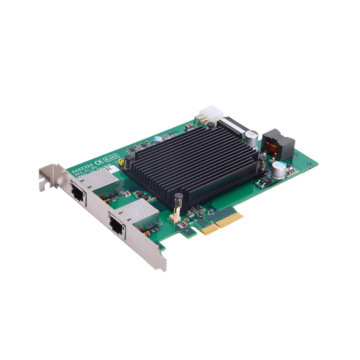

The AX92324 is a dual-port 10GbE PCI Express card based on the Intel® Ethernet Controller X550-AT2.
To meet the demands of the next-generation 10GbE cameras with high resolution and high-speed transmission over one single Ethernet cable, the AX92324 features the combination of 10GbE and IEEE802.3at compliant PoE capabilities. It also supports PoE power on/off and power budget settings via management software or API.
The AX92324 is suitable for high bandwidth, high-speed transmission and low latency requirements for machine vision, intelligent surveillance and network applications.
| Valmistaja / Brand | Axiomtek |
|---|---|
| Connection | 2x 10GBe LAN Ethernet IP |
| Data Interface | PCIEx4 |
