AX92320
Tuotenro
ax92320
Toimitusaika 21-30pv

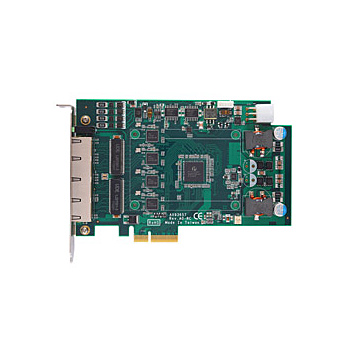

4-port PCI Express GigE Frame Grabber Card
- PCI Express x4 compliant
- 2 or 4 independent Gigabit PoE ports
- Supports 9.5KB Jumbo Frame and IEEE 1588
- Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
- Up to 20/120W PoE power from PCIe 6-pin ATX power connector
- 0°C to +60°C operating temperature range
- PoE power management software
- Supports LAN port smart on/off
Ethernet Communications
* 4 GbE LANs by Intel® i210-IT controller, support 9.5KB jumbo frame and IEEE 1588
* 8-pin RJ45
* 10/100/1000 Mbps
Power Requirements
Connection: 6-pin ATX Power Jack
Input Voltage: 12 VDC or 24 VDC
Output PoE Power:
Max. 20W w/ PCIe slot
Max. 120W w/ 6-pin ATX power connector
Dimensions
168 x 111 mm
PCI Express® x4 compliant
* 4 GbE LANs by Intel® i210-IT controller, support 9.5KB jumbo frame and IEEE 1588
* 8-pin RJ45
* 10/100/1000 Mbps
Power Requirements
Connection: 6-pin ATX Power Jack
Input Voltage: 12 VDC or 24 VDC
Output PoE Power:
Max. 20W w/ PCIe slot
Max. 120W w/ 6-pin ATX power connector
Dimensions
168 x 111 mm
PCI Express® x4 compliant
Valmistaja / Brand | Axiomtek |
---|---|
Connection | 4x 1GBe LAN Ethernet IP |
Data Interface | PCIEx4 |
