ASDM-APL6
Tuotenro
ASDM-APL6-4200
Toimitusaika 21-30pv

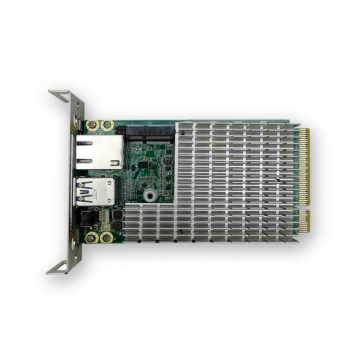

Intel® Smart Display Module with Intel® Atom® / Pentium® / Celeron® processor, 2 USB, M.2 E-Key 2230, Intel® GbE LAN
- Intel® Smart Display Module (Intel® SDM) specification
- Intel® Apollo Lake SoC on board
- One 204-pin SO-DIMM DDR3L up to 1866MT/s 8GB SDRAM
- One Intel® Gigabit Ethernet ports
- M.2 Key M slot
- M.2 (M-Key 2242), M.2 (E-Key 2230) expansion slots
- 2 USB 3.0
| System | |
| Processor | Intel® Pentium® N4200 1.10GHz / 2.50GHz (Base/Burst)QC 1.10GHZ (6W) |
| Chipset | SoC |
| Storage | eMMC onboard up to 64GB |
| Memory | 8GB LPDDR4 onboard |
| Audio | n/a |
| Graphics | Intel® HD Gen. 9-LP Graphics |
| I/O Ports | |
| SDM Edge connector | 1x USB3.0 |
| 1x HDMI 2.0 | |
| 1x DisplayPort 1.2 1x UART |
|
| 1x I2C | |
| Ethernet | 1x GbE LAN , RJ-45 |
| Other Ports | 2x USB 3.0 (Rear I/O) |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 slot for Wi-Fi/BT |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | Through SDM golden finger +12V & +3.3VBS |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 60 x 100 mm |
| Enclosure | |
| Bezel | |
| Material | |
| Mounting | Smart Display Module (SDM-S) |
| Certification | |
| Certification | CE, FCC Class A |
