ARK-7060
Tuotenro
ARK-7060-U0A1
Toimitusaika 21-30pv
4630,95 EUR 3690,00 EUR

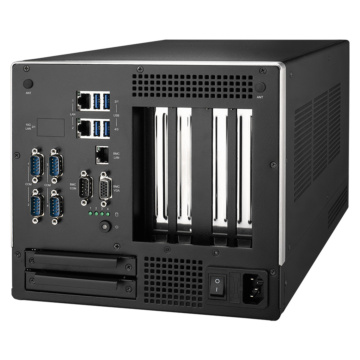

Intel® 2nd Gen. Xeon® D-1700 Extreme Performance Box PC with 3 Expansion Slots
- Powered by Intel® 2nd Gen. Xeon® D-1700 series processor up to 10 cores
- 4x DDR4 SO-DIMM sockets support ECC/non-ECC memory up to 128GB
- Versatile expansion options with PCI, PCIex4, PCIex16, M.2 B Key and E key
- Support PCIex16 high performance graphic card up to 350W
- 2x 10GbE port for fast data communication (optional)
- Up to 4 x 2.5" SATAIII HDD bay
- IPMI 2.0-compliant management with reliability and security enhancements
| System | |
| Processor | Intel Xeon D-1746TER 10-Core, 67W |
| Security Hardware | TPM2.0 (by optional module) |
| Chipset | - |
| Storage | 2 x 2.5” SATA HDD/SSD (up to 15 mm height) (up to 4 x 2.5" SATAIII HDD Bay by optional AMK-A0042) |
| Storage Support | |
| Memory | 4 x 260 pin DDR4-2933 ECC/non-ECC SO-DIMM, up to 128GB |
| Audio | |
| Graphics | 1 x VGA |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 4x RS-232/422/485 |
| Video | 1 x VGA |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet 10GbE via Intel X550 (support by optional AMO-I031) |
| Other Ports | 1GbE management port 1 x console port |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 slot 1 x PCIe x4 slot 1 x PCI 1x M2. 2230 E key 1 x M.2 2242/2280 B key with SIM holder |
| Operating System | |
| Operating System | Windows® 10, Windows® 11, LINUX |
| Power | |
| DC Input / Source Voltage | 100-240V AC ATX, 850W |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +50°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 6.0 kg |
| Dimensions | 156 x 204 x 230 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall Mount |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| Operating Temp | Normal Temp 0..60C |
