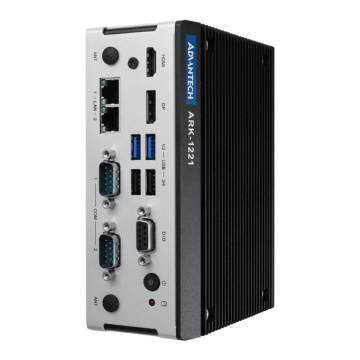

ARK-1221L
Tuotenro
ARK-1221L-S5A1
Toimitusaika 21-30pv
865,96 EUR 690,00 EUR
Intel Atom x6413E QC SoC with GbE, COM, USB, HDMI/DP and DIO ports DIN-Rail Fanless Box PC
- Intel Atom® x6413E Quad Core
- DIN-Rail system with essential I/O ports on front-side bezel
- 2 x Intel GbE and 2 x RS-232/422/485
- Dual independent displays with one 4K HDMI and one 4K DP
- 2 x USB 3.2 and 2 x USB 2.0, 1 x internal USB2.0 for security dongle
- 1 x M.2 2280 B key with nano SIM holder and 1 x M.2 2230 E key, 1 x full-size mPCIe
- mSATA and 1 x 2.5" SATA storage device
- 12V ~ 28V wide range power input, -40 ~ 60 °C extended operating temperature
| System | |
| Processor | Intel AtomTM x6413E , 4-Core 1.5Ghz |
| Security Hardware | TPM2.0 (by optional module) |
| Chipset | SoC |
| Storage | 1 x 2.5” SATA HDD/SSD |
| Storage Support | |
| Memory | 2 x 260 pin DDR4-3200 non-ECC SO-DIMM, up to 32GB |
| Audio | |
| Graphics | Intel® Iris® Xe graphics |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x HDMI 1.4 1 x DisplayPort |
| Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet |
| Other Ports | 8bit GPIO Audio CAN-port (optional ) |
| Expansion | |
| Expansion Interface | 1 x mPCIe 1x M2. 2230 E key 1 x M.2 2280 B key with SIM holder |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12-28VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +60°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 60 x 158 x 141 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Din-Rail, Wall-mount |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Elkhart Lake (Atom/Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
