ARK-11-S1A3
Tuotenro
ARK-11-S1A3
Toimitusaika 21-30pv

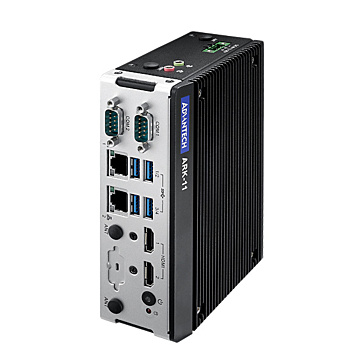

Intel Celeron N3350 DC SoC with 4K Dual HDMI/Dual LAN/M.2 DIN-Rail Fanless Box PC
- Intel Celeron N3350 Dual Core 1.1 GHz
- DIN-Rail system with essential I/O ports on front-side bezel
- I-Grade 4G DDR3L memory and 64G SSD built-in
- Windows 10 IoT Enterprise built-in
- 60W adaptor bundled in the accessory box
- Dual HDMI display up to 4K resolution
- 1 x full-size mPCIe with SIM holder and 1 x M.2 2230 for WIFI
- 12V ~ 28V wide range power input
- -30 ~ 70 °C extended operating temperature
- Advantech WISE-PaaS/DeviceOn support
| System | |
| Processor | Intel Celeron N3350 Dual Core SoC |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 64GB 2.5” SATA SS, MLC wide-temp 1 x mSATA (shared) |
| Storage Support | |
| Memory | 4GB RAM, wide-temp |
| Audio | Realtek ALC888S, High Defination Audio, Mic-in, Line-out |
| Graphics | Intel HD Graphics 500, CPU integrated |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.0 |
| Serial | 2x RS-232/422/485 |
| Video | 2 x HDMI 1.4 |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet |
| Other Ports | 16bit GPIO(optional) 1 x AT/ATX quick switch 1 x Remote switch |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (mSata,
Support SIM socket) 1 x M.2 E-key for WIFI 1 x SIM slot |
| Operating System | |
| Operating System | Windows® 10 IoT Enterprise built-in |
| Power | |
| DC Input / Source Voltage | 12-28VDC |
| Operating Temperature | |
| Operating Temperature | -30°C ~ +70°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock | 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 54 x 158 x 114 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-rail |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
