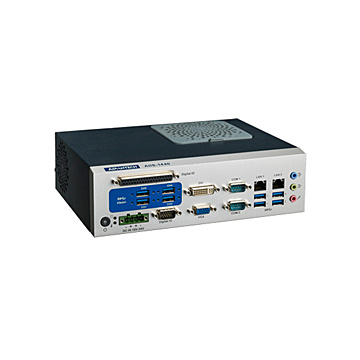

AIIS-1440-00A1E

* Intel 3rd/2nd Core i7/i5/i3 CPU (LGA1155)
* 4-CH USB 3.0 with dedicated controller
* Verified by USB3 Camera
* Volume less than 3 Liter
* Internal USB Type-A with lock design (Max. 49mm length)
* Wall or DIN rail mounting kit (optional)
* Build in G-sensor for vibration detection

Processor Core Logic System

CPU:
Intel Core i3/i5/i7

System Chipset:
Intel H61

System Memory:
Dual Channel DDR3 1066/1333 MHz (Non ECC)

I/O Interface

4 x USB3.0 ports, Dedicated controller
4 x USB3.0
2 x RS-232/422/485
4 x RS-232 COM
2 x Gbe LAN
8CH Isolated DIO
Audio
VGA
DVI-D


Storage
1x 2.5" SATA bay

Power Supply
19VDC to 24VDC
230V AC Adapter (optional)

Software Support
Windows XP/ Win 7

Environment Specifications

Operating Temperature: 0 to 45° C
Storage temperature: -40°C ~ 70°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE

Mechanical

Construction: Steel /aluminium housing

Mounting:
Desk/DIN

Dimension: 232 x 70 x 175 mm

Weight: 2.5 kg
