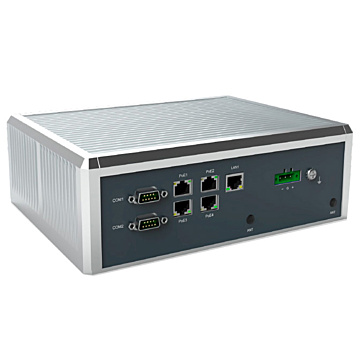

AIE900A-NX

Tuotenro

AIE900A-NX

Toimitusaika 21-30pv

0,00 EUR

Fanless edge AI system with NVIDIA® Jetson Xavier™ NX SoM, 1 HDMI, 1 GbE LAN, 4 GbE PoE, 8-CH DI/DO, and 2 COM/CAN for 5G and AMR applications

NVIDIA® Jetson Xavier™ NX with Volta™ GPU architecture with 384 NVIDIA CUDA® cores
Advanced edge AI platform for AMR, AGV and computer vision
Wide power input range of 12V/24VDC with ignition power control
Supports four GbE PoE for GigE camera and LiDAR connectivity
Wide operating temperature from -30°C to +60°C
One M.2 Key B slot for 5G/LTE
One 8-CH DI/DO & Two DB9 for RS-232/422/485/CAN

System
Processor	6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
CPU Board	NVIDIA® Jetson Xavier™ NX
GPU	384-core NVIDIA Volta™ GPU with 48 Tensor Cores
Chipset	SoC
Memory	1 x 8GB 128-bit LPDDR4x onboard
Storage	Onboard 16GB eMMC (via Jetson Xavier™ NX) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot
I/O Ports
USB 2.0
USB 3.1	2x USB 3.1
Serial	2 x DB9 for RS-232/422/485/CAN (selected by jumper setting)
Video	1 x HDMI
Ethernet	1 x 10/100/1000 Mbps Ethernet (Via Jetson Xavier™ NX) 4 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 30W)
Other Ports	1 x 8-CH DI/DO
Expansion
Expansion Interface	1 x MIPI CSI-2 connector 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x M.2 Key B 3050/3042 slot 1 x SIM slot
Operating System
Operating System	Linux Ubuntu 18.04
Power
DC Input / Source Voltage	12V/24V DC with ignition power control
Environmental
Operating Temperature	-30°C ~ +60°C
Humidity Range	10% ~ 95%, non-condensing
Vibration	3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	2.8 kg
Dimensions	239 x 185.3 x 79.4 mm
Enclosure
Material	Aluminum / Steel
Mounting	Desk / Wall mounting / DIN-rail /VESA mount
Certification
Certification	CE, FCC

Lisätietoja
Jäähdytys	Fanless
