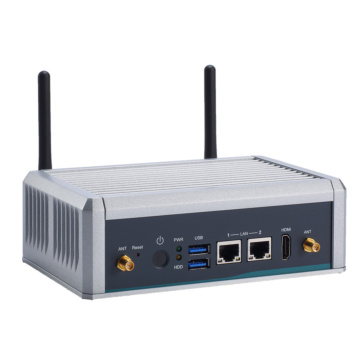

AIE500-901-FL
Tuotenro
AIE500-901-FL
Toimitusaika 21-30pv
0,00 EUR
- NVIDIA® Jetson™ TX2 with Pascal™, 256 CUDA cores GPU
- High performance AI computing for GPU-accelerated processing
- Ideal for intelligent edge applications, machine learning and computer vision
- Supports M.2 PCIe & SATA SSD and MicroSD slot
- Supports 2 USB 3.1 Gen 1 and 2 COM or 2 CAN
- Wide operating temperature from -30°C to +60°C
- JetPack supported
| System | |
| Processor | NVIDIA® Jetson™ TX2 |
| CPU Performance | HMP Dual Denver 2/2 MB L2 + Quad ARM® A57/2 MB L2 |
| Security Hardware | |
| Chipset | SoC |
| Storage | Onboard 32GB eMMC (via Jetson™ TX2 8GB) 1 x M.2 Key M 2280 with PCIe x1 and SATA SSD slot 1 x Micro SD slot |
| Memory | 1 x 8GB 128-bit LPDDR4x onboard |
| GPU / Graphics | NVIDIA® Pascal™, 256 CUDA cores |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 2x USB 3.1 Gen1 1 x Micro USB for image flash |
| Serial | |
| Video | 1 x HDMI 2.0 with 4K2K supported |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (NVIDIA® + Intel® i210-IT) |
| Other Ports | 1 x Recovery switch 1 x Reset button 1 x Power button 1 x 12 VDC power input connector 2 x SMA-type antenna connector |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI
Express signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 18.04 |
| Power | |
| DC Input / Source Voltage | 12 VDC screw type |
| Operating Temperature | |
| Operating Temperature | -30°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.2 kg |
| Dimensions | 171 x 110 x 57 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum , IP40 |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC certified |
| Jäähdytys | Fanless |
|---|
