AIE110-ONX

Muokkaa AIE110-ONX

* Pakolliset kentät

Tuote
AIE110-ONX
AIE110-ONX

0,00 EUR

Yhteenveto
    Tuotenro
    AIE110-ONX-x
    Toimitusaika 21-30pv

    0,00 EUR

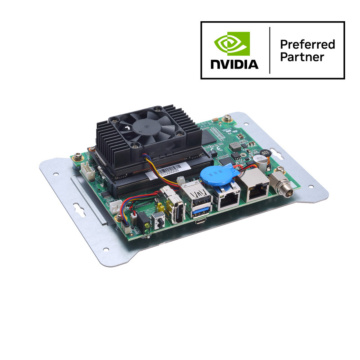

    Edge AI Developer Kit with NVIDIA® Jetson Orin™ NX SoM, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB

    • NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
    • 1 USB 2.0, 1 USB 3.2 Gen2, 1 GbE LAN
    • Supports one 15W GbE PoE for camera
    • 1 M.2 Key M NVMe SSD slot
    • 1 PCI Express Mini Card slot for Wi-Fi/Bluetooth/LTE/GPS
    • JetPack supported
    • Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
    System
    Processor 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
    8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
    GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
    Chipset SoC
    Storage 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
    Memory 16GB: 16GB 128-bit LPDDR5 onboard
    8GB: 8GB 128-bit LPDDR5 onboard
    AI Accelerator NVIDIA® Jetson Orin™ NX
    I/O Ports
    USB 2.0 1 x USB 2.0
    USB 3.0 1 x USB 3.2
    Serial -
    Video 1 x HDMI 2.1
    Ethernet 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ Nano)
    1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
    Other Ports 1 x DIO

    1 x Recovery switch
    1 x Reset button
    1 x Power button
    1 x 12 VDC power input connector
    Expansion
    Expansion Interface 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
    1 x SIM slot
    Operating System
    Operating System Linux Ubuntu 20.04 or later
    Power
    DC Input / Source Voltage Power Input Voltage 12VDC
    Operating Temperature
    Operating Temperature -10°C to 60°C
    Humidity Range 10% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Fan
    Dimensions / Weight
    Weight (kg) 0.3 kg
    Dimensions 165 x 117 x 38 mm
    Certification
    Certification CE
    Lisätietoja
    JäähdytysFanless
