AIE100A-ONX
Tuotenro
AIE100A-ONX-xx
Toimitusaika 21-30pv
0,00 EUR

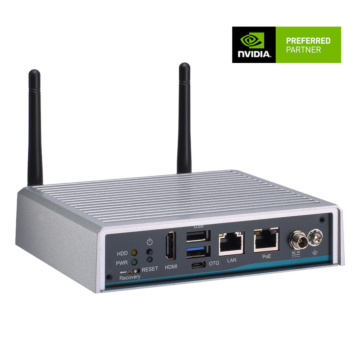

Fanless Edge AI System with NVIDIA® Jetson Orin™ NX SoM, 1 x HDMI, 1 x GbE LAN, 1 x GbE PoE and 2 x USB
- NVIDIA® Jetson Orin™ NX with 1024-core NVIDIA Ampere GPU
- High AI computing performance for GPU-accelerated processing
- Ideal for edge AI smart city applications
- Supports one 15W GbE PoE for camera
- Wide operating temperature from -30°C to +50°C
- JetPack supported
- Supports 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon
| System | |
| Processor | 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
| GPU | 1024-core NVIDIA Ampere GPU with 32 Tensor Cores |
| Chipset | SoC |
| Storage | 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot |
| Memory | 8GB: 8GB 128-bit LPDDR5 onboard 16GB: 16GB 128-bit LPDDR5 onboard |
| AI Accelerator | NVIDIA® Jetson Orin™ NX |
| I/O Ports | |
| USB 2.0 | 1x USB2.0 |
| USB 3.0 | 1x USB3.2 Gen2 |
| Serial | - |
| Video | 1 x HDMI 2.0 with 4K2K supported |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (Via Jetson Orin™ NX) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W) |
| Other Ports | - |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 20.04 or later |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC |
| Operating Temperature | |
| Operating Temperature | -30°C to 50°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1 kg |
| Dimensions | 148.6 x 129.8 x 34.6 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall mounting kit DIN-rail kit VESA mount kit |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|
