AIE100-T2NX-1L1P
Tuotenro
AIE100-T2NX-1L1P
Toimitusaika 21-30pv
0,00 EUR

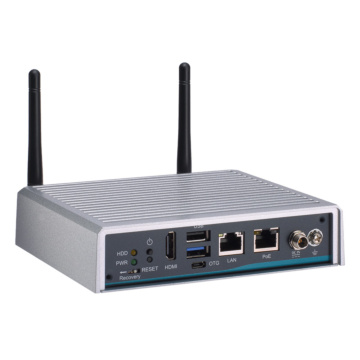

Fanless Edge AI System with NVIDIA® Jetson™ TX2 NX, HDMI, GbE LAN, GbE PoE, 2 USB, and Allxon Device Management Solutions
- NVIDIA® Jetson™ TX2 NX with Pascal™ architecture GPU with 256 CUDA cores
- High AI computing performance for GPU-accelerated processing
- Ideal for edge AI smart city applications
- Supports one 15W GbE PoE for camera
- Wide operating temperature from -30°C to +60°C
- Supports JetPack
- Supports Allxon Device Management Solutions (Allxon DMS)
| System | |
| Processor | NVIDIA® Jetson™ TX2 NX Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm® Cortex®-A57 MPCore processor |
| GPU | 256-core NVIDIA Pascal™ GPU |
| Chipset | SoC |
| Storage | Onboard 16GB eMMC (via Jetson™ TX2 NX) 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot 1 x Micro SD slot |
| Memory | 4GB 128-bit LPDDR4 51.2GB/s |
| AI Accelerator | n/a |
| I/O Ports | |
| USB 2.0 | 1 x USB 2.0 |
| USB 3.0 | 1 x USB 3.1 Gen1 |
| Serial | n/a |
| Video | 1 x HDMI 2.0 with 4K2K supported |
| Ethernet | 1 x 10/100/1000 Mbps Ethernet (Via Jetson™ TX2 NX) 1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W) |
| Other Ports | 4-CH DI 4-CH DO 2 x CANbus |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot |
| Operating System | |
| Operating System | Linux Ubuntu 18.04 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12VDC |
| Operating Temperature | |
| Operating Temperature | -30°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 148.6 mm (W) x 129.8 mm (D) x 34.6 mm (H) |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall mount kit DIN-rail kit VESA mount kit |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|
