WISE-4470-S250
SKU
WISE-4470-S250
Lead time 14-22 days

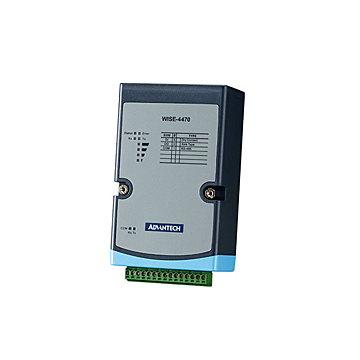

3G IoT WSN with 6DI, 2DO, RS-485 - HSPA+900/2100
Details
* Application-ready I/O combination with internal antenna
* Wide coverage of 3G frequency bands from 800 to 2100MHz
* Supports multiple cellular technologies including GSM, GPRS & HSPA
* Fast and easy deployment to reduce operation cost
* Data logger function with RTC reducing data lost
* Data can be automatically pushed to cloud service
* Supports RESTful web API in JSON format for IoT integration
* Wide coverage of 3G frequency bands from 800 to 2100MHz
* Supports multiple cellular technologies including GSM, GPRS & HSPA
* Fast and easy deployment to reduce operation cost
* Data logger function with RTC reducing data lost
* Data can be automatically pushed to cloud service
* Supports RESTful web API in JSON format for IoT integration
Specifications
| Wireless interface | |
| Function | Wireless Sensor Node |
| IEEE Standard | GSM/GPRS/HSPA |
| Frequency Band | UMTS/HSPA: 1/8 (900/2100MHz) GSM/GPRS/EDGE: 2/3/5/8(1900/1800/850/900MHz) |
| Mode/Topology | - |
| Outdoor Range | |
| GNSS | |
| Network | |
| Interface | Micro-B USB |
| Protocol | REST, MQTT, Azure |
| Analog/Sensor Input | |
| Channel | - |
| Input Type | - |
| Input Range | - |
| Digital Input/Output | |
| Channel | 6-ch Dry Contact DI 2-ch Sink-type DO |
| Serial Port | |
| Port Number | 1-port RS-485 for Modbus/RTU |
| Power Input | |
| Battery Power | - |
| External Power | 10 ~ 50 VDC |
