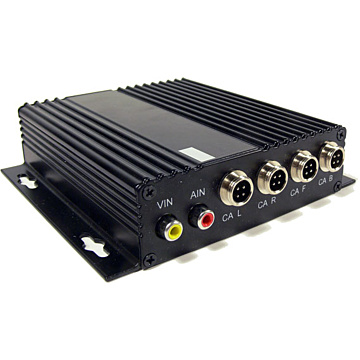

Niceview 4-channel rear view camera quad box
SKU
vs400
In Stock
130.56EUR 104.03EUR
Quad 4-channel picture splitter for rear view cameras. 4+1 inputs, 1+1 output. OSD and remote control. Short circuit protection. DC 12-32V.
Details
*Four cameras for one monitor!
*4pcs AV inputs (4-pin connector + 1xRCA)
*1pc AV outputs (4-pin connector + 1xRCA)
*1-4 camera split view and PIP view.
*Automatic picture channel triggers for full view.
*Wide operating voltage DC 12-32V
*PAL/NTSC compatible
*Mirror and normal picture functions.
*Short circuit protection.
*OSD menu for adjustable settings.
*REC output for DVR.
*Automatic timed sequencer.
*4pcs AV inputs (4-pin connector + 1xRCA)
*1pc AV outputs (4-pin connector + 1xRCA)
*1-4 camera split view and PIP view.
*Automatic picture channel triggers for full view.
*Wide operating voltage DC 12-32V
*PAL/NTSC compatible
*Mirror and normal picture functions.
*Short circuit protection.
*OSD menu for adjustable settings.
*REC output for DVR.
*Automatic timed sequencer.
Package includes
1x Niceview 4-channel rear view camera quad box
1x 4-pin female / 2xRCA male+power cable for monitor
1x Power cable
1x Remote controller
1x 4-pin female / 2xRCA male+power cable for monitor
1x Power cable
1x Remote controller
Specifications
Inputs:
4x AV (4-pin), 1Vpp, 75Ohm
1x AV (RCA), 1Vpp, 75Ohm
Outputs:
4x AV Live output for monitor (4-pin), 1Vpp, 75Ohm
1x AV REC output for DVR (RCA), 1Vpp, 75Ohm
Operating voltage: DC 12~32V
Current consumption: 4x 300mA
Operating temperature: -20~65C
Dimensions: 134x 147 x 35mm
Weight: 500g
4x AV (4-pin), 1Vpp, 75Ohm
1x AV (RCA), 1Vpp, 75Ohm
Outputs:
4x AV Live output for monitor (4-pin), 1Vpp, 75Ohm
1x AV REC output for DVR (RCA), 1Vpp, 75Ohm
Operating voltage: DC 12~32V
Current consumption: 4x 300mA
Operating temperature: -20~65C
Dimensions: 134x 147 x 35mm
Weight: 500g
