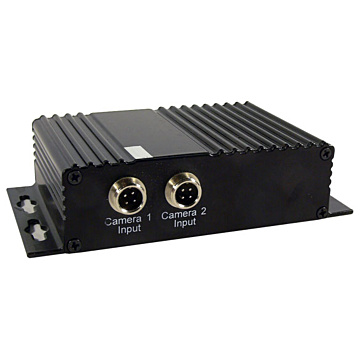

Niceview 2-channel rear view camera duplexer
SKU
vs200
In Stock
100.20EUR 79.84EUR
Duplex 2-channel picture splitter. 2x inputs, 1x output. 4-pin connection. Short circuit protection. DC 12-32V. Works as power source for cameras.
Details
*Two cameras for one monitor!
*2pcs AV inputs (4-pin connector)
*1pc AV outputs (4-pin connector)
*Split view or full view.
*Automatic picture channel triggers for full view.
*Wide operating voltage DC 12-32V
*PAL/NTSC compatible
*Mirror and normal picture functions.
*Short circuit protection.
*2pcs AV inputs (4-pin connector)
*1pc AV outputs (4-pin connector)
*Split view or full view.
*Automatic picture channel triggers for full view.
*Wide operating voltage DC 12-32V
*PAL/NTSC compatible
*Mirror and normal picture functions.
*Short circuit protection.
Package includes
1x Niceview 2-channel rear view camera duplexer
1x 4-pin female / 2xRCA male+power cable for monitor
1x Power cable
1x 4-pin female / 2xRCA male+power cable for monitor
1x Power cable
Specifications
2x Video inputs, 1Vpp, 75Ohm
1x Video outputs, 1Vpp, 75Ohm
Operating voltage: DC 12~32V
Current consumption: 2x 300mA
Power: max 14W
Operating temperature: -20~65C
Dimensions: 147x80 x 35mm
Weight: 300g
1x Video outputs, 1Vpp, 75Ohm
Operating voltage: DC 12~32V
Current consumption: 2x 300mA
Power: max 14W
Operating temperature: -20~65C
Dimensions: 147x80 x 35mm
Weight: 300g
