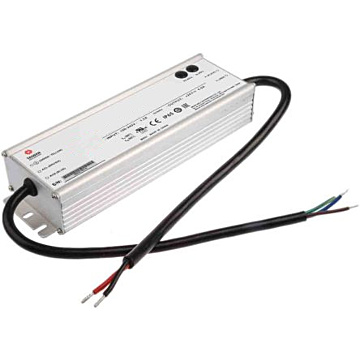

Power supply 230VAC/12VDC 240W IP65
SKU
powdc65-240
Lead time 5-10 days
136.63EUR 108.87EUR
For outdoor use in moisture, dusty, dirty and vibrating environments. IP65-protected power supply with DC12V/240W output. 10G vibration resistance. Aluminum housing filled with heat dissipating silicone. Wide operating temperature -55~70C. Fanless design. Protections: short circuit, overload, over voltage, over heating. Input and output cables open without connectors.
| OUTPUT | DC Voltage | 12V |
| Rated Current | 16A | |
| Rated Power | 192W | |
| Ripple and Noise | 150mVp-p | |
| Voltage tolerance | +/-2.5% | |
| Line Regulation | +/-0.5% | |
| Load Regulation | +/-2% | |
| Setup rise time | 500ms, 80ms/230VAC at full load | |
| Hold up time | 15ms at full load | |
| INPUT | Voltage range | 90 ~ 305VAC 127 ~ 431VDC |
| Frequency range | 47-63Hz | |
| Efficiency | 90.00% | |
| AC Current | 1.05A/230AC | |
| Inrush current | COLD START 75A/230VAC | |
| Leakage current | <0.75mA / 277VAC | |
| PROTECTION | Overload | 105-125% |
| Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||
| Short circuit | Constant current limiting, recovers automatically after fault condition is removed | |
| Over Voltage | 13.5-18V | |
| Protection type : Shut down o/p voltage, re-power on to recovery | ||
| Over Temperature | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | Working temp | -55 - +70C |
| Working humidity | 20-95% | |
| Storage temp | -60- +80C / 10-95% | |
| Temp coeffient | +/-0.03% | |
| Vibration | 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | Safety Standards | UL60950-1 , IP65, EAC TP TC 004 approved ; design refer to TUV EN60950-1 |
| Withstand voltage | I/P-O/P:3.75KVAC | |
| Isolation resistance | I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | |
| Emc emission | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |
| Emc immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 171.1K hrs min MIL-HDBK-217F (25C) |
| Dimension | 244*68*38.8mm (L*W*H) |
| Input Voltage | 230VAC , 1-Phase |
|---|---|
| Output voltage | DC12V |
| Power | 240W |
| Applications | Indoor, Outdoor |
| Suojausluokka | IP65 All-sides |
