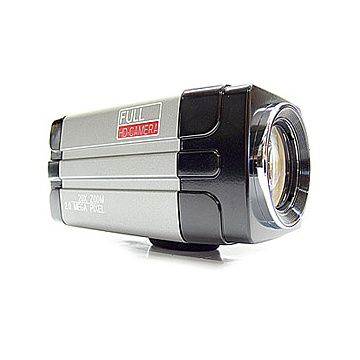

Minrray FULL-HD Camera UV1201M
SKU
uv1201
Lead time 8-16 days
FULL-HD, 20xOptical Zoom with auto focus. HDMI, 3G-SDI, LAN. Indoors. DC12V. RS-485 for remote joystick.
Details
*Perfect video quality with 1/2.8" CMOS video sensor.
*Support FULL-HD (1920x1080) resolution max 30fps.
*Optical zoom 20x, perfect for video streaming, when target is not very close.
*Auto focus.
*Supports RS-485 for joystick control.
*View angle max 55 degrees.
*Multiple outputs: HDMI, 3G-SDI, LAN.
*Supports H.265/H.264 video codecs.
*Standard 1/4" camera screw thread for mounting.
*Supports RTSP, RTMP, ONVIF, GB/T28181 video-protocols.
*Support FULL-HD (1920x1080) resolution max 30fps.
*Optical zoom 20x, perfect for video streaming, when target is not very close.
*Auto focus.
*Supports RS-485 for joystick control.
*View angle max 55 degrees.
*Multiple outputs: HDMI, 3G-SDI, LAN.
*Supports H.265/H.264 video codecs.
*Standard 1/4" camera screw thread for mounting.
*Supports RTSP, RTMP, ONVIF, GB/T28181 video-protocols.
Package includes
1x Minrray FULL-HD Camera UV1201M
1x AC-power adapter AC230V/DC12V
1x AC-power adapter AC230V/DC12V
Specifications
| Model | UV1201 |
| Camera Parameter | |
| Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels | 16: 9, 2.07 megapixel |
| Video Format | 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/30/25 /59.94/29.97 |
| Optical Zoom | 20X optical zoom, f＝4.7～94mm |
| View Angle | 2.9°(tele)–55.4°(wide) |
| Aperture | F1.6 ～ F3.5 |
| Digital Zoom | 10X |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) |
| DNR | 2D & 3D DNR |
| White Balance | Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
| Focus | Auto/Manual |
| Aperture | Auto/Manual |
| Electronic Shutter | Auto/Manual |
| BLC | ON/OFF |
| WDR | OFF/ Dynamic level adjustment |
| Video adjustment | Brightness,Color,Saturation,Contrast,Sharpness,B/W mode,Gamma curve |
| SNR | >55dB |
| Input/output Interface | |
| Video Interfaces | HDMI,3G-SDI |
| Image Code Stream | Dual stream output |
| Video Compression Format | H.264, H.265 |
| Control Protocol | Protocol:VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
| HD IP Interface | 100M IP port (10/100BASE-TX),Support Visca protocol control through IP port. |
| Network Protocol | RTSP/RTMP, ONVIF |
| Power Interface | 5.0 Card line socket (DC12V) |
| Other Parameter | |
| Power Adaptor | AC110V-AC220V to DC12V/1A |
| Input Voltage | DC12V±10% |
| Input Current | 400mA(Max) |
| Consumption | 4.8W (Max) |
| Store Temperature | -10℃～+60℃ |
| Store Humidity | 20% – 95% |
| Working Temperature | -10℃～+50℃ |
| Working Humidity | 20%–80% |
| Dimension | 155.7mmX70mmX70mm |
| Weight | 0.7KG |
| Application | Indoor |
| Remote Operation (IP) | Remote Upgrade, Reboot and Reset |
| Accessory | 12V/1A Power supply,User Manual,Warranty card,brackets(optional) |
