UTC-320GP-ATB0E
SKU
UTC-320GP-ATB0E
Lead time 21-30 days

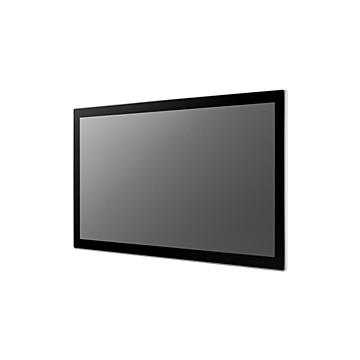

21.5" Ubiquitous Touch Computer with Intel® Pentium® N4200
Details
* Built-in Intel® Pentium® N4200
* Fanless and low power consumption
* Natural viewing experience with 16:9 21.5" display
* Front panel complies with IP65 protection standard
* Landscape and portrait screen modes support different applications
* VESA 100 mm standard mounting holes for varied mounting demands
* Detachable frame design for panel mount applications
* Fanless and low power consumption
* Natural viewing experience with 16:9 21.5" display
* Front panel complies with IP65 protection standard
* Landscape and portrait screen modes support different applications
* VESA 100 mm standard mounting holes for varied mounting demands
* Detachable frame design for panel mount applications
Specifications
| System | |
| Processor | ntel® Pentium® N4200 |
| CPU Performance | 1.1GHz (Quad-Core) |
| Security Hardware | |
| Chipset | |
| Storage | 1 x SATA SSD |
| Storage Support | |
| Memory | 1 x SO DIMM DDR3L 1866MHz up to 8 GB |
| Memory (RAM) | 4GB |
| Display | |
| Screen Size | 21.5" TFT LCD |
| Screen Resolution | 1920x1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 250 nits |
| Viewing Angle | 178/178 |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 4x USB 3.0 |
| Serial | 1x RS-232, 1x RS2-32/422/485 |
| Video | 1x HDMI |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | Audio Line-out x 1, Mic-in x 1 |
| Operating System | |
| Operating System | Windows 10 Pro, Windows 10 IoT, Android6.0, Linux |
| Power | |
| DC Input / Source Voltage | 12V DC / 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | M.2 2230/mSATA |
| Multimedia | |
| Integrated Speakers | 2x 1 Watt Speaker |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC (32ºF to 122ºF) |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.8 kg |
| Dimensions | 505 x 316 x 45.9 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum/ Plastic |
| Mounting | VESA 100 x 100 |
| Note * | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
