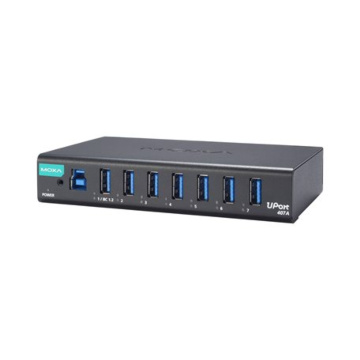

UPort 407A
SKU
UPort-407A
Lead time 21-30 days
7 -port general-purpose USB 3.2 hub
- USB-IF certification
- USB 3.2 SuperSpeed capability
- Latching USB cable design for firmer connection
- Comprehensive diagnostic LEDs
- Dual power inputs (power jack and terminal block)
- DIN-rail housing and wall-mountable housing
- Rugged metal housing
| USB Interface | |
| USB Standards | USB 3.2 Gen 1 USB 1.1/2.0 compliant |
| Speed | 5 Gbps |
| USB Connector | UFP: type B DFP: type A |
| No. of USB Ports | 8 (UFP: 1, DFP 7) for UPort 407A 5 (UFP: 1, DFP 4) for UPort 404A |
| Power Parameters | |
| Input Voltage | 12 to 48 VDC No. of power inputs: 2 |
| Reverse Polarity Protection | Supported |
| Output Power Rating | Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible) Rest of ports: 900 mA @ 5 VDC |
| Physical | |
| Housing | |
| Dimensions | Uport 404A models: 85 x 27 x 100 mm UPort 407A models: 80 x 27 x 140 mm |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 75°C |
| Manufacturer / Brand | Moxa |
|---|
