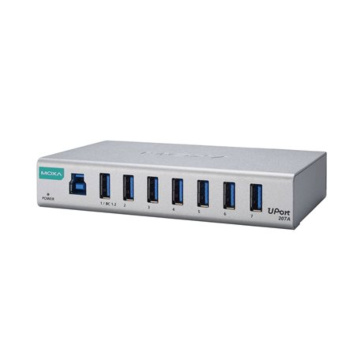

UPort 207A
SKU
UPort-207A
Lead time 21-30 days
7 -port general-purpose USB 3.2 hub
- USB-IF certification
- USB 3.2 SuperSpeed capability
- IP30 aluminum housing
- DIN-rail housing and wall-mountable housing
| USB Interface | |
| USB Standards | USB 1.1/2.0 compliant USB 3.2 Gen 1 |
| Speed | 5 Gbps |
| USB Connector | UFP: type B DFP: type A |
| No. of USB Ports | 8 (UFP: 1, DFP 7) for UPort 207A 5 (UFP: 1, DFP 4) for UPort 204A |
| Power Parameters | |
| Input Voltage | No. of power inputs: 1, 12 VDC |
| Reverse Polarity Protection | Supported |
| Output Power Rating | Port 1: 900 / 1500 mA @ 5 VDC (BC 1.2 compatible) Rest of ports: 900 mA @ 5 VDC |
| Physical | |
| Housing | |
| Dimensions | UPort 207A: 80 x 27 x 140 mm UPort 204A: 85 x 27 x 100 mm |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 75°C |
| Manufacturer / Brand | Moxa |
|---|
