UNO-148

Customize UNO-148

* Required Fields

Your Customization
UNO-148
UNO-148

0.00EUR

Summary
    SKU
    UNO-148-x
    Lead time 21-30 days

    0.00EUR

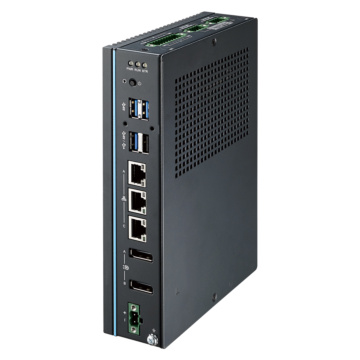

    Compact DIN-Rail Edge Controller with 11th Gen Intel® Core™ i CPU

    • Port isolation for 8 x DI, 8 x DO, 4 x COM
    • Supports M.2 M key 2280 NVMe SSD storage, M.2 B key 2242 storage, 3042/3052 cellular modules, and M.2 E Key 2230 wi-fi modules
    • Dual 2500BASE-T Ethernet supports Time-Sensitive Network(TSN) technology
    • Remote out-of-band (OOB) power management with Advantech iBMC technology
    • Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified
    System
    Processor Intel® Core™ i3-1115G4E 2.2GHz Dual core
    Intel® Core™ i5-1145G7E 1.5GHz Quad core
    Intel® Core™ i7-1185G7E 1.8GHz Quad core
    Security Hardware TPM2.0
    Chipset SoC
    Storage 1 x NVMe M.2 SSD slot (2280 M-key)
    1 x M.2 B key
    Storage Support
    Memory 1 x SO-DIMM with 8 GB DDR4 3200 Mhz
    1 x DDR4 SO-DIMM Slot
    Audio
    Graphics Intel® Iris® X
    I/O Ports
    USB 2.0 1 x USB2.0
    USB 3.2 3x USB 3.2
    Serial 4 x isolated RS-232/422/485
    Video 2 x DisplayPort
    Ethernet 2 x 10/100/1000 Mbps
    1 x 10/100/1000/2500 Mbps Ethernet
    Other Ports 8bit DIO
    Expansion
    Expansion Interface 1 x Full-size mPCIe
    1 x M.2 E key
    1 x M.2 M key
    1 x M.2 B key
    Operating System
    Operating System Windows® 10, Windows® 11, LINUX
    Power
    DC Input / Source Voltage 10-36V DC
    Operating Temperature
    Operating Temperature -20°C ~ +60°C (with Wide-Temp SSD, Memory)
    Humidity Range 10% ~ 90%, non-condensing
    Vibration 4 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
    Shock 50 G, IEC 60068-2-27, half sine, 11 ms duration
    Cooling System / Thermal Solution
    Thermal Solution Fanless
    Dimensions / Weight
    Weight (kg) 1.3 kg
    Dimensions 45 x 140 x 200 mm
    Enclosure
    Bezel
    Material Aluminum
    Mounting Din-Rail
    Certification
    Certification CE
    More Information
    CoolingFanless
    CPU FamilyTiger Lake (11th Gen Core i3/i5/7) Mobile
    Operating TempWide Temp -20..70C
