TREK-550

SKU
TREK-550-GXPEA0E
Lead time 21-30 days

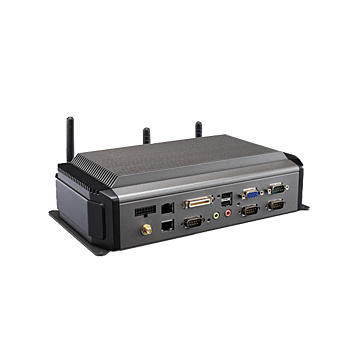

Intel® Atom™ Industrial In-Vehicle PC, 1.1Ghz,1GB RAM, 4GB CF, GPRS, WINXPe
Details
* Automotive grade working temperature range (-30° C to 70° C)
* Rich I/O including CAN, LAN, RS-232, RS-485, J1708, isolation 4DI/4DO, Line out, Mic in, USB, and Vi
* Built-in communication modules, including GSM/GPRS/HSDPA/CDMA, WLAN & Bluetooth
* GPS with AGPS and dead reckoning technology (Gyro & speed line)
* Certifications: CE/FCC/e-mark, MIL-SD810F, ISO 7637-2, SAE J1455,SAE J1113 regulations
* Dual display/audio output for both driver and passenger
* Ignition on/off delay; SW detectable/controllable for car power management
Package includes
TREK-550-GXPEA0E
*Intel Atom XL Z510PT 1.1GHz GPRS XP
*1GB RAM
*4GB CF Industrial
*Windows XPe
Specifications
Processor Core Logic System

CPU:
Intel Atom XL Z510PT 1.1 GHz

System Chipset:
Intel LE82US15EE

System Memory:
1GB DDR2


I/O Interface
1 x CAN 2.0 A/B by RJ45
3 x USB host ports type A connector with cable clip
1 x Mic-in jack with cable clip
1 x line out jack with cable clip
2 x RS-232, 5V@ 500mA, 12V@ 250mA, ping9, by jumper selected
1 x 4-wire RS-232,
1 x RS485
1 x J1708
4 x Isolated Dry Contact Digital Inputs by DB9 (2500 Vrms protection)
4 x Relay driver by DB9
Video in
2 x composite video input selection supported format (for rear view monitor) by RJ-45 connector
(NTSC, PAL, SECAM with automatic format detection)
1 x VGA output by DB-15 (independent display)
1 x 10/100/1000 Ethernet ( with LEDs) by RJ-45


Storage
4GB CF Industrial
1 x HDD bay


Power Supply
6-36V DC Input

Software Support
Windows 2000/Windows XP/XPE, WinCE, Linux

Environment Specifications
Operating Temperature -30°C to 70°C
Storage temperature: -40°C ~ 85°C
Humidity: 10% ~ 90% (non-condensing)

Safety: CE
e-mark, SAE J1455, SAE J1113, ISO7637-2

Mechanical
Construction: Steel /aluminium / Plastic
Dimension: 266 x 149 x 68.2 mm
Weight: 4 kg

For more information see datasheet.
