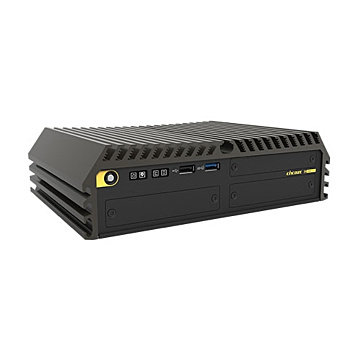

DV-1100
SKU
DV-1100
In Stock
0.00EUR
13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer
- Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
- 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
- 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
- Wide operating temperature -40°C to 70°C
| System | |
| Processor | 13th Generation Intel® Raptor Lake-S Series CPU 12th Generation Intel® Alder Lake-S Series CPU |
| Security Hardware | |
| Chipset | Intel H610E Chipset |
| Storage | 1x 2.5” SATA HDD/SSD Bay 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD |
| Audio | Realtek® ALC888, High Definition Audio |
| Memory | 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 32GB |
| Graphics | Integrated Intel® UHD Graphics
770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| I/O Ports | |
| USB 2.0 | 3x USB2.0 |
| USB 3.0 | 3x USB 3.2 |
| Serial | 2x RS-232/422/485 |
| Video | 1 x VGA 1 x DisplayPort 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion |
| Ethernet | 1x 2.5GbE LAN, RJ45, Intel® I225 1x 1GbE LAN, RJ45, Intel® I219 |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | 1x CFM IGN Interface for optional CFM-IGN Module
Expansion 1x CMI Interface for optional CMI-Display Module Expansion 2x CMI Interface for optional CMI-COM/DIO Module Expansion 1x M.2 Key B Type 3042/3052 Socket, Support 5G/Storage/Add-on Card Expansion 1x M.2 Key B Type 2242 Socket, Support Storage/Add-on Card Expansion 1x M.2 Key E Type 2230 Socket, Support Wireless/Intel CNVi Module Expansion 1x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC IGN function with optional module |
| Operating Temperature | |
| Operating Temperature | 35W TDP Processor: -40°C to 70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.5 kg |
| Dimensions | 224 x 162 x 62 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall / DIN-RAIL / VESA Mount |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | CE, UKCA, FCC, ICES-003 Class A EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) EN 50155 (EN 50121-3-2 Only) E-mark (Pending) |
| Cooling | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
