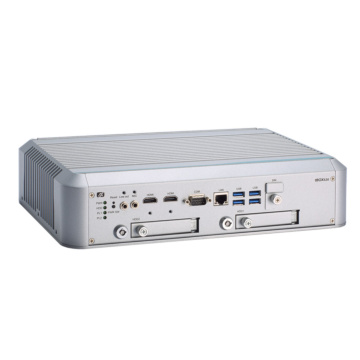

tBOX520-ADL-MR Railway Computer

Customize tBOX520-ADL-MR Railway Computer
tBOX520-ADL-MR-Barebone

* Required Fields

Your Customization
 tBOX520-ADL-MR Railway Computer
tBOX520-ADL-MR Railway Computer

0.00EUR

Summary
    SKU
    tBOX520-ADL-MR
    Lead time 21-30 days

    0.00EUR

    Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 Processor for Railway

    • CE, LVD, FCC, EN 50155, EN 45545-2 certified
    • 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-U)
    • 24 to 110 VDC for Railway applications
    • Value-added modules available for various I/O requirements (COM/LAN/DIO/PoE/CAN/BNC)
    • Intelligent solution of power management (ACC ignition)
    • 2 swappable 2.5" SATA drives
    System
    Processor 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor
    Security Hardware TPM2.0
    Chipset SoC integrated
    Storage 1 x M.2 M key 2280 NVMe SSD (PCIe x4)
    2 x Swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported
    Memory 2 x DDR5-4800 SO-DIMM, up to 64GB
    Graphics
    I/O Ports
    USB 2.0
    USB 3.0 4x USB 3.0
    Serial 1 x DB9 serial console or RS-232/422/485
    More COM ports available from I/O module (optional)
    Video 2 x Type A HDMI 1.4b (4K)
    Ethernet 1 x RJ-45 2.5GbE (Intel® i226-IT)
    PoE: Available from I/O module (optional)
    Other Ports CANBus: Available from I/O module (optional)
    DIO: Available from I/O module (optional)
    1 x Mic-in
    1 x Line-out
    Expansion
    Expansion Interface 1 x M.2 Key for 5G/WiFi 6/BT (PCIe/USB)
    1 x Full-size Rev.1.2 PCI Express Mini Card slot for LTE/WIFI/BT (PCIe/USB)
    2 x nano SIM slot
    1 x M.2 Key A+E for WiFi 6/BT (PCIe/USB)
    Operating System
    Operating System Windows® 10 / Windows® 11 / LINUX
    Power
    DC Input / Source Voltage 1 x M12 Connector
    24 to 110 VDC input
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Vibration 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
    1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
    2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
    MIL-STD-810G, Method 514.6C-VI Category 4 compliant
    Shock EN 50155: EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg)
    Dimensions 321 x 210.2 x 73.3 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Wall-mount
    Certification
    Certification CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2
    More Information
    CoolingFanless
