tBOX313-835-FL
SKU
tBOX313-835-FL-RJ-POE-DC
Lead time 21-30 days

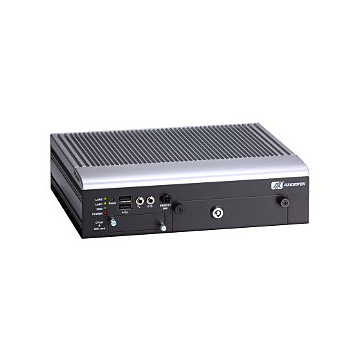

Fanless vehicle embedded system, with Intel Atom E3845 1.91 GHz 4 GB DRAM, 2 USB, 1 CAN bus, 2 PoE RJ-45 GbE LAN, 4 RS-422/485, 1 RS-232 and DIO
Details
* eMark, ISO7637 certificated, EN45545-2 complied
* Intel Atom Bay Trail-I E3845 4C@1.91 GHz
* High performance DDR-1333 4 GB memory onboard
* Operating temperature range of -40°C ~ +70°C
* Isolated RS-422/485, CANbus 2.0A/B and DIO ports
* Supports USB 2.0 and SATA2
* Suspension one 2.5” SATA HDD and 1 CFast™ socket
* Instant fuse repair design
* Internal mini PCIe slots and SIM socket
* Intel Atom Bay Trail-I E3845 4C@1.91 GHz
* High performance DDR-1333 4 GB memory onboard
* Operating temperature range of -40°C ~ +70°C
* Isolated RS-422/485, CANbus 2.0A/B and DIO ports
* Supports USB 2.0 and SATA2
* Suspension one 2.5” SATA HDD and 1 CFast™ socket
* Instant fuse repair design
* Internal mini PCIe slots and SIM socket
Package includes
tBOX313-835-FL-RJ-POE-DC
*1.91Ghz Atom cpu
*4GB RAM
*1.91Ghz Atom cpu
*4GB RAM
Specifications
Processor Core Logic System
CPU:
Intel Atom processor E3845 1.91 GHz
System Chipset:
SoC Integrated
System Memory:
4GB DDR3L RAM
Ethernet
2 x 10/100/1000Mbps RJ-45 PoE(optional M12 connector)
I/O Interface
4 x isolated RS-422/485
1 x isolated RS-232
1 x HDMI
1 x VGA
1 x isolated CAN bus
1 x isolated DI/DO (6-IN/2-OUT)
MIC-in/Line-out (Screw type)
Storage
1 x 2.5" SATA HDD drive bay
1 x CFast
Expansion
3 x PCI Express Mini Card (one supports mSATA)
2 x SIM
Power Supply
9 ~ 36VDC typical: 12/24VDC
Software Support
Win7, Win8, Linux
Environment Specifications
Operating Temperature -40°C to 70°C (with Wide-temp SSD)
Storage temperature: -40°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)
Safety: CE, eMark, ISO 7637, EN45545-2 compliance
Mechanical
Construction: Steel /aluminium housing
Mounting:
Desk
Dimension: 244 x 180.5 x 65.1 mm
Weight: 3.0 kg
CPU:
Intel Atom processor E3845 1.91 GHz
System Chipset:
SoC Integrated
System Memory:
4GB DDR3L RAM
Ethernet
2 x 10/100/1000Mbps RJ-45 PoE(optional M12 connector)
I/O Interface
4 x isolated RS-422/485
1 x isolated RS-232
1 x HDMI
1 x VGA
1 x isolated CAN bus
1 x isolated DI/DO (6-IN/2-OUT)
MIC-in/Line-out (Screw type)
Storage
1 x 2.5" SATA HDD drive bay
1 x CFast
Expansion
3 x PCI Express Mini Card (one supports mSATA)
2 x SIM
Power Supply
9 ~ 36VDC typical: 12/24VDC
Software Support
Win7, Win8, Linux
Environment Specifications
Operating Temperature -40°C to 70°C (with Wide-temp SSD)
Storage temperature: -40°C ~ 80°C
Humidity: 10% ~ 90% (non-condensing)
Safety: CE, eMark, ISO 7637, EN45545-2 compliance
Mechanical
Construction: Steel /aluminium housing
Mounting:
Desk
Dimension: 244 x 180.5 x 65.1 mm
Weight: 3.0 kg
