SSD5745-I
SKU
SSD5745-I
Lead time 21-30 days

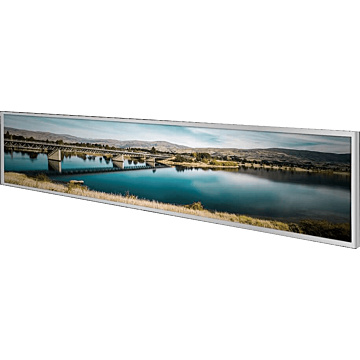

57.4” Resizing LCD,1000 nits LED backlight, 3840 x 807
- 57.4" Sunlight readable, Public Information Display
- Resolutions: 3840 x 807
- Resizing display (aspect ratio of 16:3.4)
- Slim Bezel
- Long lasting 24/7 operations
- MTBF: 100,000 hours
| Display | |
| Screen Size | 57.4" TFT LCD |
| Screen Resolution | 3840x807 |
| Display Ratio | 16 ::3 |
| Contrast Ratio | 5600 ::1 |
| Brightness | 2000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 1.07B |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
1x DVI-D |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 230V AC |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 15.0 kg |
| Dimensions | 1462.5x 333.8x 65.1mm |
| Enclosure | |
| Bezel size |
16/16/16/16 mm |
| Material | |
| Mounting | VESA 500x150, 900x150 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
