SSD2845-E
SKU
SSD2845-ENB-G21
Lead time 21-30 days

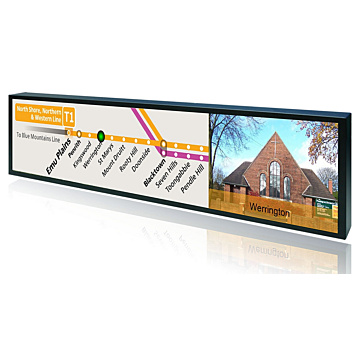

28" Resizing LCD, 1000 nits LED backlight, 1920x357
- 28" resizing LCD
- Resizing display (aspect ratio of 16:3)
- Sunlight readable, high brightness (1,000 nits)
- Resolutions: 1920 x 357
- Wide viewing angle of 178° (H), 178° (V)
- EN50155 certified
- MTBF: 70,000 hours
| Display | |
| Screen Size | 28" TFT LCD |
| Screen Resolution | 1920x357 |
| Display Ratio | 16 ::3 |
| Contrast Ratio | 6500 ::1 |
| Brightness | 1000 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
1x VGA |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 12V DC input |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 5.6 kg |
| Dimensions | 745.6x183.3x57.5mm |
| Enclosure | |
| Bezel size |
24.9/24.9/22.1/22.1 mm |
| Material | |
| Mounting | VESA 75x75 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
