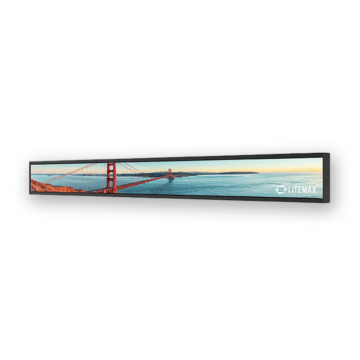

SSD2312-Y
SKU
SSD2312-Y
Lead time 21-30 days
23.1" Stretched LCD, LED backlight 350 nits, 1920 x158
- 23.1" high brightness (350 nits)
- Low power consumption
- Long lasting 24/7 operations
- MTBF: 100,000 hours
| Display | |
| Screen Size | 23.1" TFT LCD |
| Screen Resolution | 1920x158 |
| Display Ratio | 16 ::1.3 |
| Contrast Ratio | 3000 ::1 |
| Brightness | 350 nits |
| Viewing Angle | 178°(H),178°(V) |
| Number of Colors | 16.7M |
| Touch Screen | |
| Touchscreen | - |
| I/O Ports | |
| Video |
Micro-USB, Micro-SD card |
| Other Ports | |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 12V DC input |
| Multimedia | |
| Operating Temperature | |
| Operating Temperature | 0ºC to 45ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 0.8 kg |
| Dimensions | 597.4x 60.4 x 16mm |
| Enclosure | |
| Bezel size |
5.2/5.2/4.6/6.2mm |
| Material | |
| Mounting | VESA 320x45 ,100x40 ,75x40 |
| Protection | |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE / FCC |
