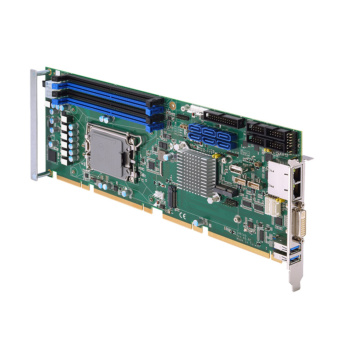

PICMG 1.3 Full-Size CPU Card with LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E, SATA 3.0, M.2 Key E/M, USB 3.2 Gen1/Gen2, Dual 2.5GbE LAN, and DVI-I
- LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
- Intel® R680E chipset
- DDR5 4400MHz U-DIMM up to 128GB ECC (R680E only)/ non-ECC memory
- Supports Intel® AMT and vPro (R680E)
- TPM 2.0 supported (optional)
- Supports dual 2.5GbE
- Supports LPT port
- Supports M.2 Key M/ Key E (H610E only supports Key E)
- Supports PCIe 4.0 through the gold fingers
| Form Factor | |
| Form Factor | PICMG 1.3 Full-Size |
| System | |
| Processor | LGA1700 13th/12th Gen Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor (up to 125W) |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® R680E |
| Storage | M.2 Key M 2280, PCIe 4.0 x4 signal (R680E only) 6 x SATA-600, support RAID 0/1/5/10 (R680E) |
| Memory | 4 x DDR5-4400MHz* ECC or non-ECC U-DIMM, up to 128GB (R680E) |
| Graphics | Intel® integrated Gfx graphic engine |
| I/O Ports | |
| USB 2.0 | 3 x USB 2.0 (2 Internal pin headers, 1 port with 180D type A) |
| USB 3.0 | 2 x USB 3.2 Gen2x1 (Rear I/O) 4 x USB 3.2 Gen2x1 (Internal box header) |
| Serial | 2 x RS-232 2 x RS-232/422/485, mode selection by SW |
| Video | 1 x DVI-I 1 x DisplayPort (internal header) |
| Ethernet | 1 x 10/100/1000/2500 Mbps (Intel® I225-LM; Intel® AMT
with Intel vPro®) 1 x 10/100/1000/2500 Mbps (Intel® I225-V) |
| Other Ports | 1 x PS/2 keyboard internal connector 1 x PS/2 mouse internal connector 1 x LPT 1 x Smart CPU fan 2 x Smart system fan TPM 2.0 module (optional) |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 Gen4 1 x PCIe x4 Gen4 or 4 x PCIe x1 Gen4 4 x 32-bit PCI bus masters 1 x M.2 Key E 2230 |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | |
| Power Requirements | Intel® Core™ i5-12400 with 32GB 4 x DDR5-4400, +12V_CPU @5.2A , +5V @4.64A, +3.3V @1.76A |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 338mm x 126mm |
| Certification | |
| Certification | CE |
| Manufacturer / Brand | Axiomtek |
|---|---|
| Socket | LGA1700 |
| Form Factor | PICMG 1.3 |
