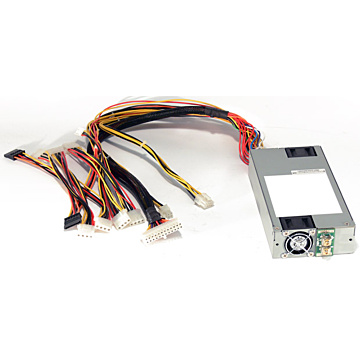

STC-24-300W DC-DC 24V ATX 1U PSU

300W DC-DC 1U size Power Supply.
24V DC input.

* Wide DC Input Range (DC 18-36V)
* Design to meet ATX12V Standard
* Build-in Thermal Fan Speed Control
* Short circuit protection
* Over Voltage protection

Usage:
*Industrial PC
*Car computing
*Telecom
*Marine
*Aerospace

High quality power supply for 1U rackmount 24V systems.



ENVIRONMENTAL CONDITIONS:
● Cooling: Forced Air-cooling, 40x40x38mm Fan x 2 (Two Ball Bearing )
● Operating Temperature: 0°C ~ +45°C
● Operating Humidity: 20%~85% RH. (Non condensing)
● Storage Temperature: -20°C~+80°C
● Storage Humidity: 10%~90% RH. (Non condensing)
● Operating Altitude: 10M Below Sea level and 3000M Above Sea level

DC INPUT CHARACTERISTICS:
● Input connector type: 40A/ 300V Table type single Terminal x 2
● Input Current: 9A/18A(300W) @Full Load High Line& Low Line
● Inrush Current: Less than 50A Cold start @25°C ambient

DC OUTPUT CHARACTERISTICS:


OVERALL PERFORMANCE:
● Efficiency: 70% typical @24V DC Input Full Load
● Power Good Signal: TTL Compatible signal, on delay 100~500ms, off delay 1ms min
● Short Circuit Protection (SCP): All output equipped with SCP (shutdown and latch off)
● Over Power Protection (OPP): Peak power protected to 130%±10% of continuous rated power (shutdn and latch off)
● Over Voltage Protection (OVP): +5V, +12V & +3.3V

RELIABILITY:
● MTBF (Mean Time Between Failure): 70,000 hours @max. Load, 24V DC & 25°C ambient
● Safety Standards: Meet UL60950 and TüV EN60950
● EMI Compatibility (EMC) Standard: FCC Part 15 Class B, CISPR22 (EN55022) Class B (CE mark)
● Dielectric Withstand Input to Output: 1500Vac for 1sec
● Dielectric Withstand Input to Frame Ground: 1500Vac for 1sec
● Leakage Current:
Output Connector specific:
● ATX 24 Pin
● +24V(P4) 4 Pin
● HDD, DVD 4 pin
● FDD 4 pin
● Serial ATX

Standard Output Cable Length:
● 520mm

Power Chassis Dimension:
100(W) x 205(L) x 40,5(H) mm

Net Weight:
● 2kg

Gross Weight:
● 2.1~2.4kg
