SDM500L-I3B-NN1
SKU
SDM500L-I3B-NN1
Lead time 21-30 days

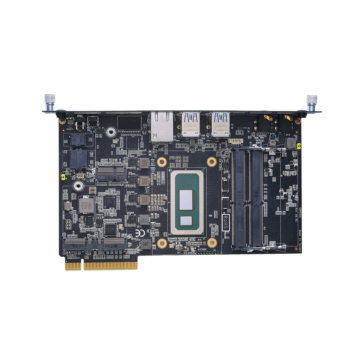

Intel® Smart Display Module Large (Intel® SDM-L) with 8th Gen Intel® Core™ i7/i5/i3, Intel® Celeron® Processor, HDMI and LAN
- Intel® Smart Display Module (Intel® SDM) specification
- 8th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor (Whiskey Lake-U)
- 2 DDR4-2400 SO-DIMM for up to 32G of memory
- M.2 Key E slot
- M.2 Key M slot
- M.2 Key B slot
- One HDMI, four USB 3.0, and LAN
- Supports Intel® AMT 12
| System | |
| Processor | Intel® Core™ i3-8145UE processor |
| Chipset | SoC |
| Storage | 1 x M.2 Key B 2242 slot 1 x M.2 Key M 2280 slot |
| Memory | 2 x 260-pin DDR4-2400 SO-DIMM, up to 32G |
| Graphics | Integrated Intel® HD Graphics |
| I/O Ports | |
| SDM Edge connector | 1 x USB3.0 |
| 1x HDMI 2.0 | |
| 1x DisplayPort 1.2 1x Serial TX/RX |
|
| 1 x I2C | |
| Ethernet | 1x GbE LAN , RJ-45 |
| Other Ports | HD audio codec with Mic-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 slot for Wi-Fi/BT |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | Through SDM golden finger +12V & +3.3VBS |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 175 x 100 mm |
| Enclosure | |
| Bezel | |
| Material | |
| Mounting | |
| Certification | |
| Certification | CE, FCC Class A |
