SDC0FF0I

SKU

SDC0FF0I

Lead time 21-30 days

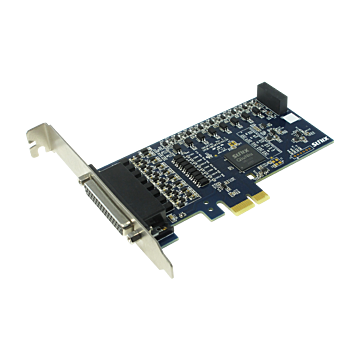

Industrial I/O Control PCIe Card 16+16-ch Isolated Digital I/O

Expands isolated eight (16) digital input channels with features for all channels.
- Support both NPN & PNP devices
- Support both dry and wet contact connections
- With digital filter for noise reduction
- Built-in 32-bit counter for all digital in channels
Expands isolated eight (16) NPN type digital output channels with initial value (Booting & Restart) protection.
Each channel built-in 2.5KV isolation protection for signal and power, allowing the input signals to be completely floated so as to prevent ground loops.
Plug-n-Play, I/O address and IRQ assigned by system.
Ultra low power consumption (<1.5W) design for green environment and industrial application.
High quality electronic components, low impedance and high stability ensure product quality and reliability.

Board
Interface	PCI Express
Controller	SUNIX QiuNiu UART Digital-I/O Controller
BUS	PCI Express 1.0 x1
IRQ & IO	Assigned by System
ESD Protection	±15KV IEC61000-4-2 Air Gap Discharge ±8KV IEC61000-4-2 Contact Discharge

Digital Input Communication
Type	NPN & PNP
Channel	16-Channel
Dry Contact	Logic Level 0: Open; Logic Level 1: Close to GND
Wet Contact	Logic Level 0: 0 to 3VDC; Logic Level 1: 10 to 50VDC
Pin Define	DI1~DI16, COM, GND
Counter	32-bit counter for all channel
Interrupt Mode	Event trigger (Rising Edge, Falling Edge, Both modes) & polling for all channels
Noise Reduction	Digital Filter

Digital Output Communication
Type	NPN
Channel	16-Channel
Voltage Range	3.5 to 40VDC
Current	500mA per Channel
Pin Define	DO1~DO16, PWR, GND
Initial Protection	Initial Value Setup (Booting & Restart protection)
