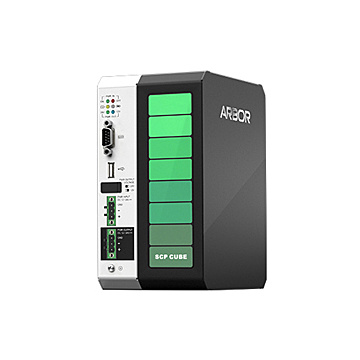

SCP CUBE 41
SKU
SCP-41
Lead time 21-30 days
489.45EUR 390.00EUR
New-Generation Supercapacitor Industrial Power Backup Solution,
30W/120sec
30W/120sec
Details
* Designed for industrial box PC & panel PC
* Maintenance free supercapacitors
* Safe and reliable; no danger of fire or explosion
* No danger of overcharging
* Fully discharged for safety
* Environmentally friendly without hazardous materials
* Wide operating temperature range (-20°C to 70°C)
* Multi-function control utility
* Maintenance free supercapacitors
* Safe and reliable; no danger of fire or explosion
* No danger of overcharging
* Fully discharged for safety
* Environmentally friendly without hazardous materials
* Wide operating temperature range (-20°C to 70°C)
* Multi-function control utility
Specifications
| System | |
| Chip | High current supercap backup controller |
| I/O Ports | |
| USB 2.0 | 1 x Type-A connector |
| COM | 1 x COM with RS-232 |
| Operating System | |
| Operating System | Windows® 10 (software for shutdown) |
| Power | |
| Power Output | DC 12V / 24V output with switch support |
| Power Input | Power Input Voltage 12~28VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +70°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 2.2 kg |
| Dimensions | 100 x 150 x 187.4 mm |
| Enclosure | |
| Material | Steel |
| Mounting | Din rail |
| Peripherals & Devices | |
| Accessories | 1 x USB to USB cable, 1 x RS-232 DB9 to DB9 cable, 2 x 3-pin plug for terminal block |
| Certification | |
| Certification | CE |
