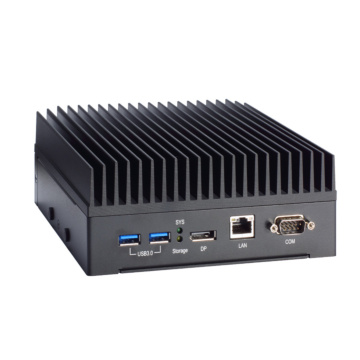

    Fanless Edge AI Computer Vision System with Xilinx® Kria™ K26 SoM, GbE LAN, CANbus, PMOD, COM, USB 3.0, DisplayPort, and 5G Wireless Connection

    • Xilinx® Kria™ K26 SoM
    • Supports GbE LAN for cameras
    • Supports 5G wireless connection
    • Wide operating temperature from -30°C to +75°C
    • Wide voltage input from 12 to 24 VDC
    • Supports Linux
    • Ideal for edge AI smart city / industrial applications
    System
    Processor Quad-core Arm® Cortex®-A53 MPCore™ up to 1.5GHz
    AI Accelerator Xilinx Kria K26 System-on-Module
    GPU / Graphics Mali™-400 MP2 up to 667MHz
    Security Hardware
    Chipset SoC
    Storage eMMC 16GB
    1 x M.2 Key B 2242 SSD slot (SATA3)
    Memory Onboard DDR4 4GB, 64-bit
    I/O Ports
    USB 2.0 -
    USB 3.0 2 x USB 3.0
    Serial 1 x RS-232
    Video 1 x Display 1.4
    Ethernet 1 x 10/100/1000 Mbps Ethernet
    Other Ports 1 x 12-pin PMOD
    Expansion
    Expansion Interface 1 x M.2 Key B 3052 slot for 5G
    1 x SIM socket
    Operating System
    Operating System Linux
    Power
    DC Input / Source Voltage 12-24V DC
    Environment
    Operating Temperature -30°C ~ +75°C
    Humidity Range 10% ~ 95%, non-condensing
    Vibration 3.5 Grms (5 to 500Hz, X, Y, Z directions)
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.5 kg
    Dimensions 150 x 111.0 x 65.6 mm
    Enclosure
    Bezel
    Material Aluminum , steel
    Mounting Wall mount
    Certification
    Certification CE, FCC certified
    More Information
    CoolingFanless
