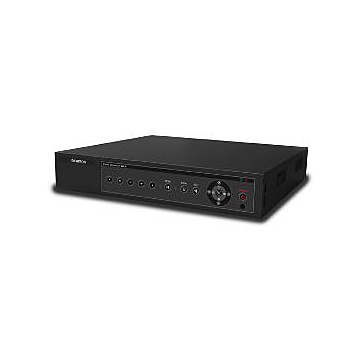

Rifatron DVR SH4-316 4000GB
SKU
rftr-sh4-316
Not available
1,001.98EUR 798.39EUR
16 Universal HD-TVI/AHD/Analog inputs. Full-HD record resolution 1080p@400fps. 4000GB HDD included. Internet/HDMI/VGA/USB/eSATA/Audio/RS-485. Alarm in/out.
Details
16-chanel compact and powerful universal HD-TVI/AHD and analog Digital Video Recorder.
*16x Universal BNC-video inputs, support HD-TVI/AHD and analog cameras.
*Record resolution 1920x1080@400fps.
*4000GB HDD included for 7 days of continuous recording.
*Record motion detection, timed and alarm.
*Internet-function with RJ45 Ethernet connection, can be connected to router or PC.
*Internet remote live view, recordings, settings and relay control.
*Internet remote view supported by PC Windows, Mac, iPad, iPhone, Android, Windows Phone.
*HDMI and VGA monitor outputs.
*USB for backups and USB-mouse.
*RS-485 for PTZ-cameras.
*Control the DVR with USB-mouse (not included), remote controller, front buttons and Internet.
*16x Universal BNC-video inputs, support HD-TVI/AHD and analog cameras.
*Record resolution 1920x1080@400fps.
*4000GB HDD included for 7 days of continuous recording.
*Record motion detection, timed and alarm.
*Internet-function with RJ45 Ethernet connection, can be connected to router or PC.
*Internet remote live view, recordings, settings and relay control.
*Internet remote view supported by PC Windows, Mac, iPad, iPhone, Android, Windows Phone.
*HDMI and VGA monitor outputs.
*USB for backups and USB-mouse.
*RS-485 for PTZ-cameras.
*Control the DVR with USB-mouse (not included), remote controller, front buttons and Internet.
Package includes
1x Rifatron DVR SH4-316 4000GB
1x AC-power adapter
1x Software and manual CD
1x AC-power adapter
1x Software and manual CD
Specifications
| Model | SH4-316 (HD-TVI/AHD/Analog) |
| Camera Input | 16 Universal HD-TVI/AHD/analog (max 1080p) |
| Video output | 1 HDMI/VGA/BNC |
| Audio Input | 16 RCA |
| Audio Output | 1 HDMI/RCA |
| Compression | H.264 / G.711U |
| Recording Speed | 1080p 400fps (PAL) |
| Recording Resolution | 1080p (1920x1080 Full-HD) |
| Display Resolution | HDMI:Full-HD, HD, WSxGA,SxGA/VGA:SxGAWSxGA |
| Storage | 2 HDD (1 HDD + 1 eSata) |
| Backup Interface | USB2.0, Network |
| Network Interface | Ethernet 10/100/1000 |
| PTZ Interface | 2 RS-485, Terminal block |
| Alarm I/O | 4/1 NC/NO/EOL |
| Power Supply | DC12V / 5A |
| Consumption | 60W |
| Operating Temperature | 5-40C |
| Humidity | 10-80% |
| Weight | 3Kg (Without HDD) |
| Dimension | 340 x 59 x 300mm |
| Video signal | Analog (960H), HD-TVI, AHD |
|---|
